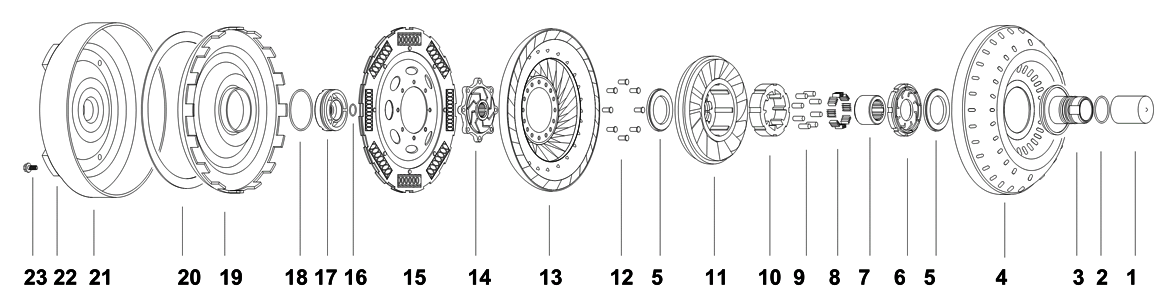

Torque Converter | Chrysler | A518, 45RFE & 545RFE

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" &
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" &
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)

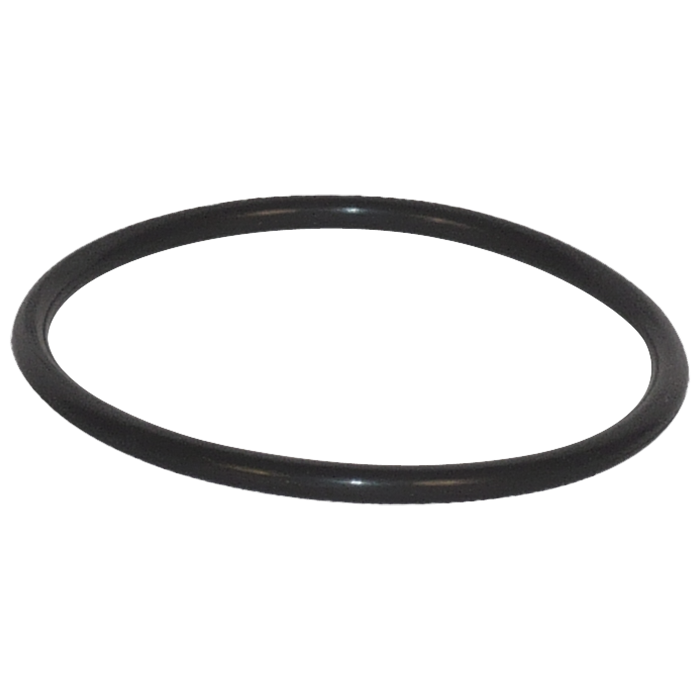

2 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.612
  • Inside Dia metric: 40.9448
 TO-25-15
O-Ring TO-25-15
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.612
  • Inside Dia metric: 40.9448

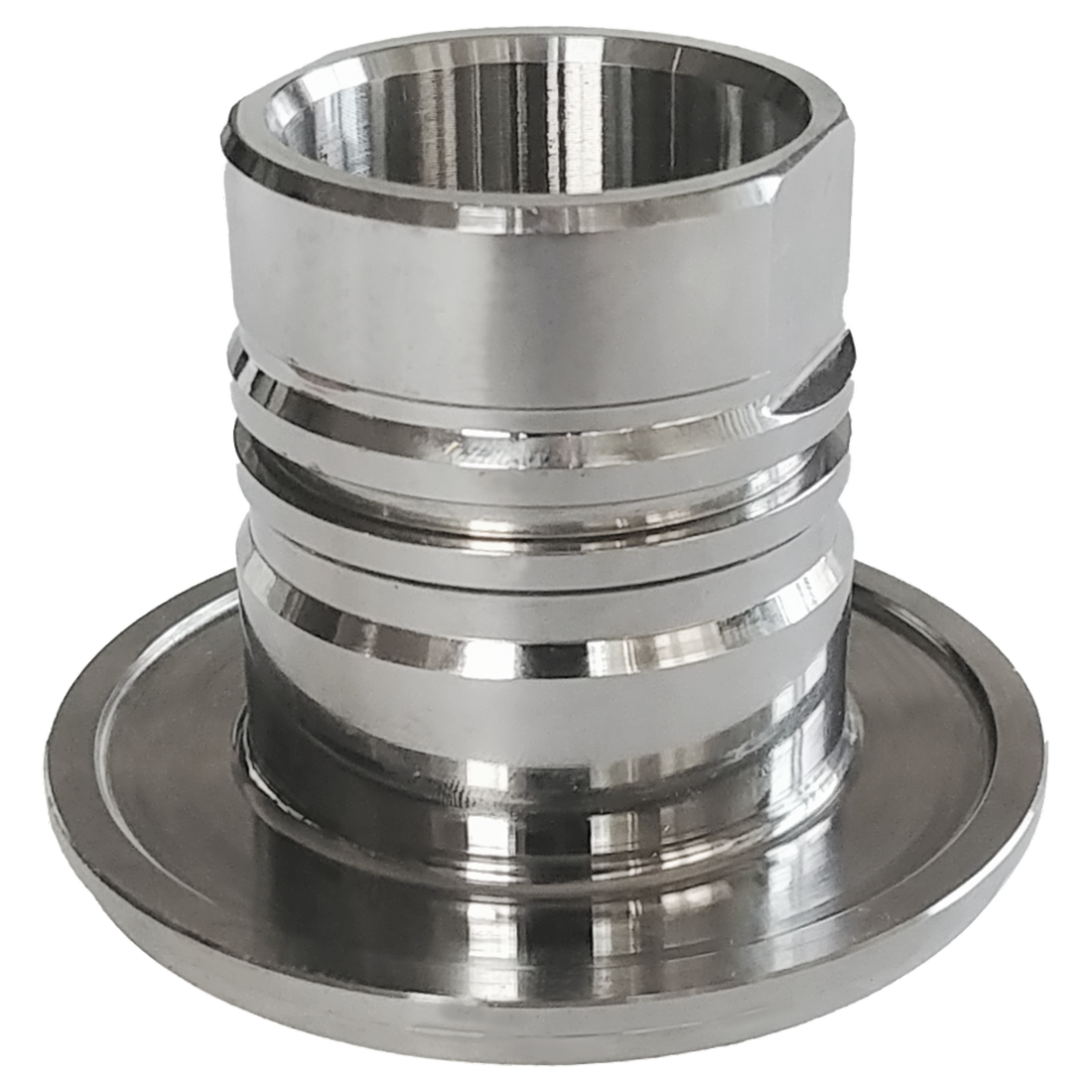

3 Impeller Hub Flanged
  • Journal Dia: 1.875"
  • Installed Height: 2.053"
  • Height: 2.212
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.120"
  • Hardness: Rc 32-36
 TH-1-42FLG
Impeller Hub TH-1-42FLG
Flanged &
  • Journal Dia: 1.875"
  • Installed Height: 2.053"
  • Height: 2.212
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.120"
  • Hardness: Rc 32-36
4 Impeller NPN-3-22-4
Impeller NPN-3-22-4
&
5 Bearing Impeller Side, 41TE Late 2 Pieces Required.
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.99
  • Inside Dia: 2.086"
 TW-2-22B
Bearing TW-2-22B
Impeller Side, 41TE & Late 2 Pieces Required.
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.99
  • Inside Dia: 2.086"
5 Bearing 2 Pieces Required.
  • Thickness: 0.181
  • Thickness metric: 4.6
  • Bearing type: Enclosed
  • Outside Dia: 2.82
  • Inside Dia: 1.898
  • Outside Dia Metric: 71.63
  • Inside Dia metric: 48.21
 TW-2-4
Bearing TW-2-4
& 2 Pieces Required.
  • Thickness: 0.181
  • Thickness metric: 4.6
  • Bearing type: Enclosed
  • Outside Dia: 2.82
  • Inside Dia: 1.898
  • Outside Dia Metric: 71.63
  • Inside Dia metric: 48.21
5 Bearing 2 Pieces Required.
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.82"
  • Inside Dia: 1.9"
 TW-2-4NA
Bearing TW-2-4NA
& 2 Pieces Required.
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.82"
  • Inside Dia: 1.9"
6 Misc NPN-SPL
Misc NPN-SPL
&
6 Stator Cap
  • Thickness: .42"
  • Material: Phenolic
  • Outside Dia: 3.50"
  • Inside Dia: 1.46"
  • 4736151AB
 TW-4-19
Stator Cap TW-4-19
&
  • Thickness: .42"
  • Material: Phenolic
  • Outside Dia: 3.50"
  • Inside Dia: 1.46"
  • 4736151AB

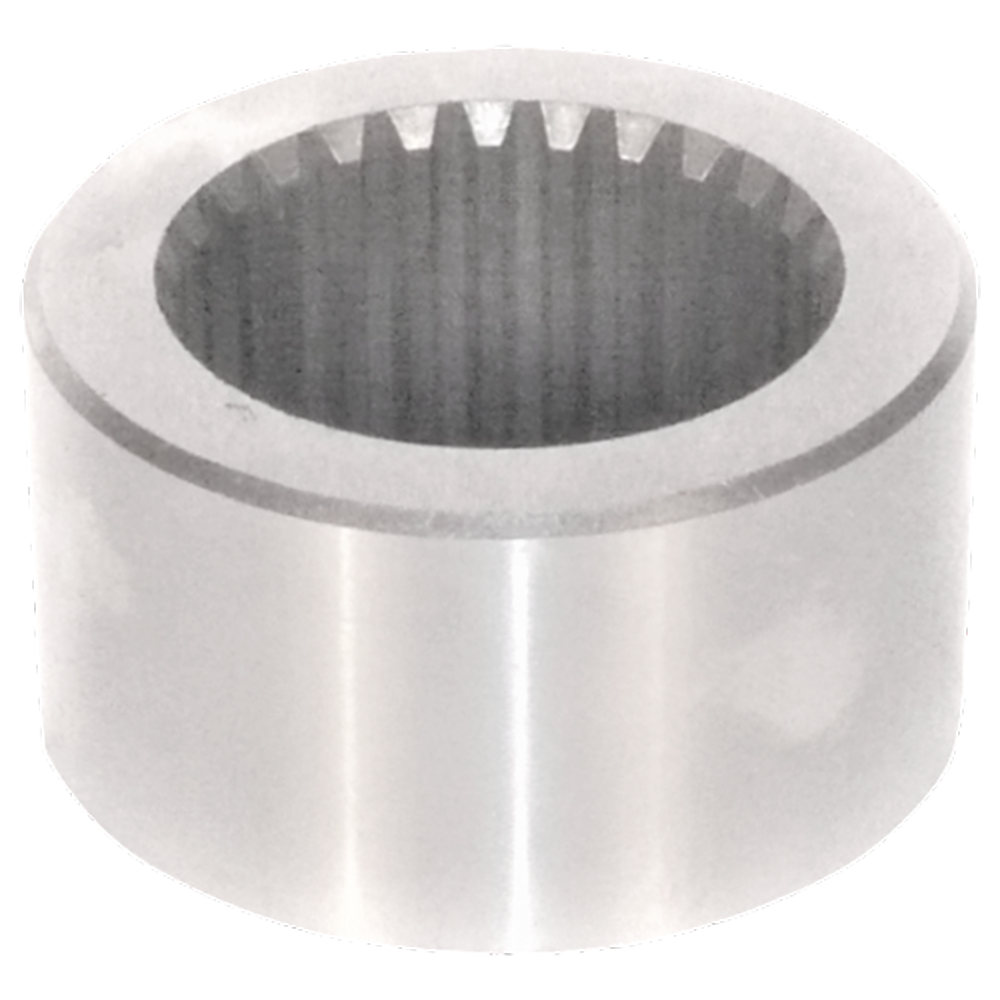

7 Inner Race Stator
  • Height: 1.040"
  • Internal Teeth: 27
  • Outside Dia: 1.939"
 TX-14-6
Inner Race TX-14-6
Stator &
  • Height: 1.040"
  • Internal Teeth: 27
  • Outside Dia: 1.939"
8 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7
Roller TR-7
& 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"

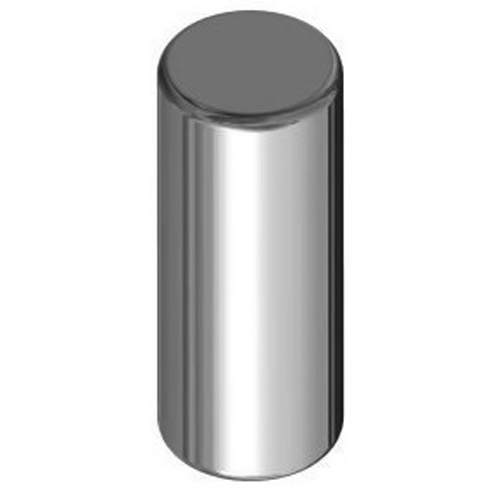

8 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7-2
Roller TR-7-2
& 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
9 Accordion Spring 8 Pieces Required. 1942187
Accordion Spring 1942187
& 8 Pieces Required.
9 Accordion Spring 8 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
 FS-6-10
Accordion Spring FS-6-10
& 8 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
9 Accordion Spring 8 Pieces Required.
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
 TS-6
Accordion Spring TS-6
& 8 Pieces Required.
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
10 Cam Outer NPN-3-22-10
Cam NPN-3-22-10
Outer &
11 Stator 4736578AB, 20 Blade NPN-3-22-11
Stator NPN-3-22-11
4736578AB, 20 Blade &

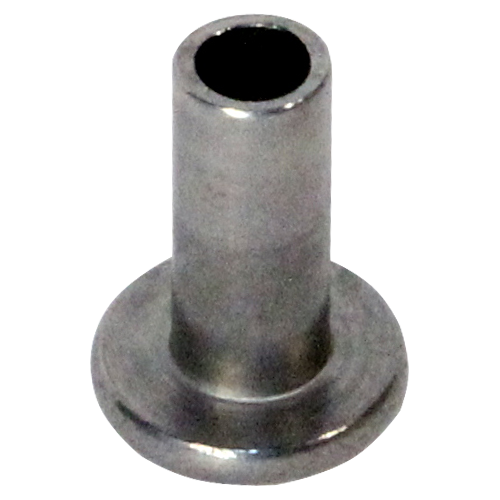

12 Rivet 8 Pieces Required.
  • Length: 0.594"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.249"
  • Rivet Head Dia: 0.490"
 TX-12-6
Rivet TX-12-6
& 8 Pieces Required.
  • Length: 0.594"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.249"
  • Rivet Head Dia: 0.490"
13 Turbine NPN-3-22-13
Turbine NPN-3-22-13
&
14 Turbine Hub SMI-138-AB
  • Height: 0.910"
  • Internal Teeth: 29
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.28"
 TX-13-38HT
Turbine Hub TX-13-38HT
& SMI-138-AB
  • Height: 0.910"
  • Internal Teeth: 29
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.28"
15 Damper Assembly 8 Springs NPN-3-22-15
Damper Assembly NPN-3-22-15
8 Springs &
16 O-Ring
  • Thickness: 0.078
  • Thickness metric: 1.9812
  • Material: Fluorocarbon
  • Inside Dia: 0.669
  • Inside Dia metric: 16.9926
  • For TW-9-23/A (Inside)
 TO-25-16
O-Ring TO-25-16
&
  • Thickness: 0.078
  • Thickness metric: 1.9812
  • Material: Fluorocarbon
  • Inside Dia: 0.669
  • Inside Dia metric: 16.9926
  • For TW-9-23/A (Inside)
17 Turbine Washer
  • Thickness: .67"
  • Material: Plastic
  • Outside Dia: 2.76"
  • Inside Dia: 0.69"
 TW-9-23
Turbine Washer TW-9-23
&
  • Thickness: .67"
  • Material: Plastic
  • Outside Dia: 2.76"
  • Inside Dia: 0.69"

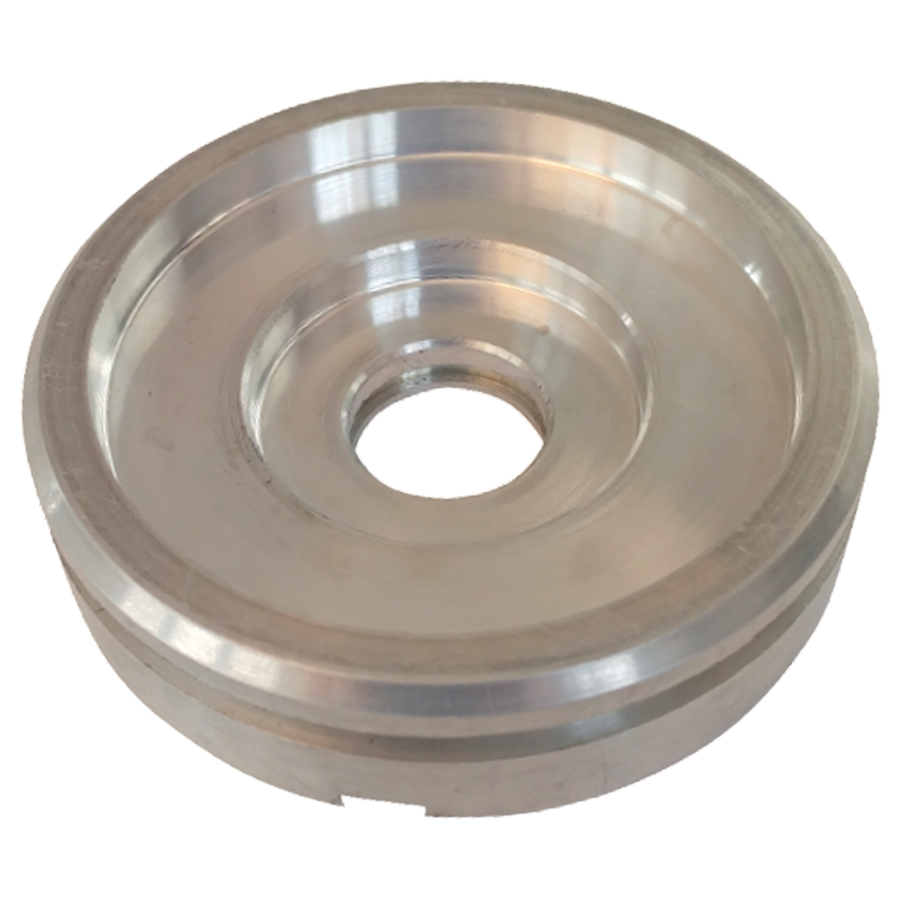

17 Turbine Washer Heavy Duty
  • Thickness: .67"
  • Material: Aluminum
  • Outside Dia: 2.76"
  • Inside Dia: 0.69"
 TW-9-23A
Turbine Washer TW-9-23A
Heavy Duty &
  • Thickness: .67"
  • Material: Aluminum
  • Outside Dia: 2.76"
  • Inside Dia: 0.69"
18 O-Ring Spacer, For TW-9-23/A (Exterior)
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Material: Fluorocarbon
  • Inside Dia: 2.573
  • Inside Dia metric: 65.3542
 TO-25-17
O-Ring TO-25-17
Spacer, For TW-9-23/A (Exterior) &
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Material: Fluorocarbon
  • Inside Dia: 2.573
  • Inside Dia metric: 65.3542
19 Lockup Clutch NPN-3-22-19
Lockup Clutch NPN-3-22-19
&
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.5"
  • Inside Dia: 9.188"
 TX-23-19
Lining (Friction Ring,Wafer) TX-23-19
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.5"
  • Inside Dia: 9.188"
21 Front Cover NPN-3-22-21
Front Cover NPN-3-22-21
&
21 Front Cover 45RFE, 545RFE TX-22-14
Front Cover TX-22-14
45RFE, 545RFE &
22 Mounting Pad Threaded, 5/16"-24 NPN-3-22-22
Mounting Pad NPN-3-22-22
Threaded, 5/16"-24 &
23 Bolt Threaded, 5/16"-24 NPN-3-22-23
Bolt NPN-3-22-23
Threaded, 5/16"-24 &
