Part Search

Torque Converter | Borg Warner | D.G. With Direct Drive Clutch 12" (305mm Dia.) (Not For Export)

Ill.# Image Description Specification Part #
Stud Thin Head Type
  • (Use FX-10-4)
 FX-10-2
Stud FX-10-2
Thin Head Type &
  • (Use FX-10-4)
Stud
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
 FX-10-4
Stud FX-10-4
&
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
Ring Gear converter, Studebaker Commander
  • External Teeth: 133
  • Outside Dia: 13.52"
  • Inside Dia: 12.096"
 RG-133F
Ring Gear RG-133F
converter, Studebaker Commander &
  • External Teeth: 133
  • Outside Dia: 13.52"
  • Inside Dia: 12.096"

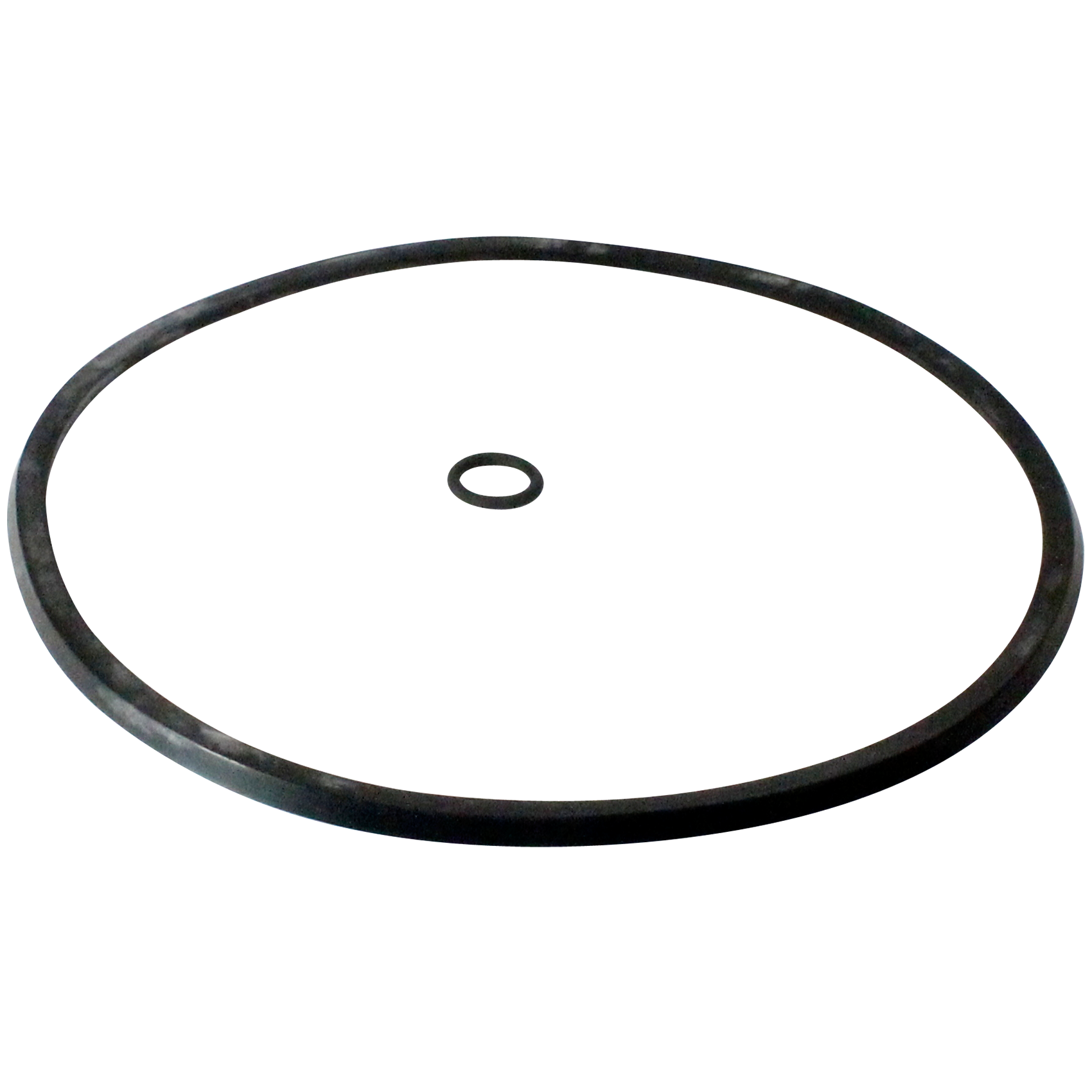

Lip Seal Kit Torque Converter WO-23-20K
Lip Seal Kit WO-23-20K
Torque Converter &

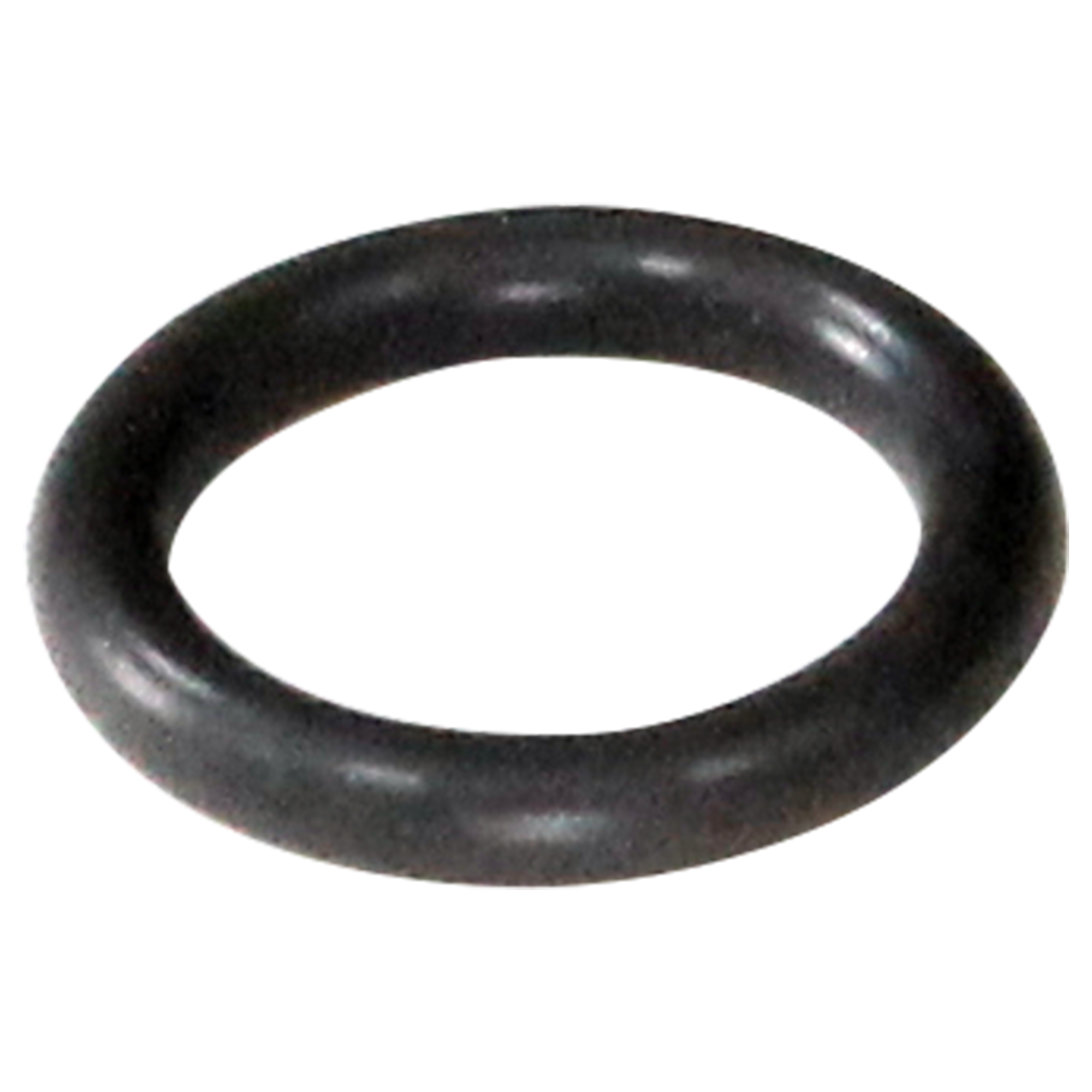

O-Ring Small WO-23-20S
O-Ring WO-23-20S
Small &
Turbine Washer 4 Lugs
  • Thickness: .06"
  • Material: Bronze
  • Outside Dia: 1.845"
  • Inside Dia: 1.38"
 WW-9
Turbine Washer WW-9
4 Lugs &
  • Thickness: .06"
  • Material: Bronze
  • Outside Dia: 1.845"
  • Inside Dia: 1.38"
Shim
  • Thickness: 0.012"
  • Outside Dia: 1.91"
  • Inside Dia: 1.45"
 WW-9-1
Shim WW-9-1
&
  • Thickness: 0.012"
  • Outside Dia: 1.91"
  • Inside Dia: 1.45"
Drain Plug 3/8- 24 Thread
  • 3/8- 24 Thread
 WX-11
Drain Plug WX-11
3/8- 24 Thread &
  • 3/8- 24 Thread
Gasket For WX-11
  • Inside Dia: 0.375"
 WX-11G
Gasket WX-11G
For WX-11 &
  • Inside Dia: 0.375"
Rivet
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12A
Rivet WX-12A
&
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
Inner Race Stator
  • Height: 1.035"
  • Internal Teeth: 19
  • Outside Dia: 2.156"
 WX-14-2
Inner Race WX-14-2
Stator &
  • Height: 1.035"
  • Internal Teeth: 19
  • Outside Dia: 2.156"

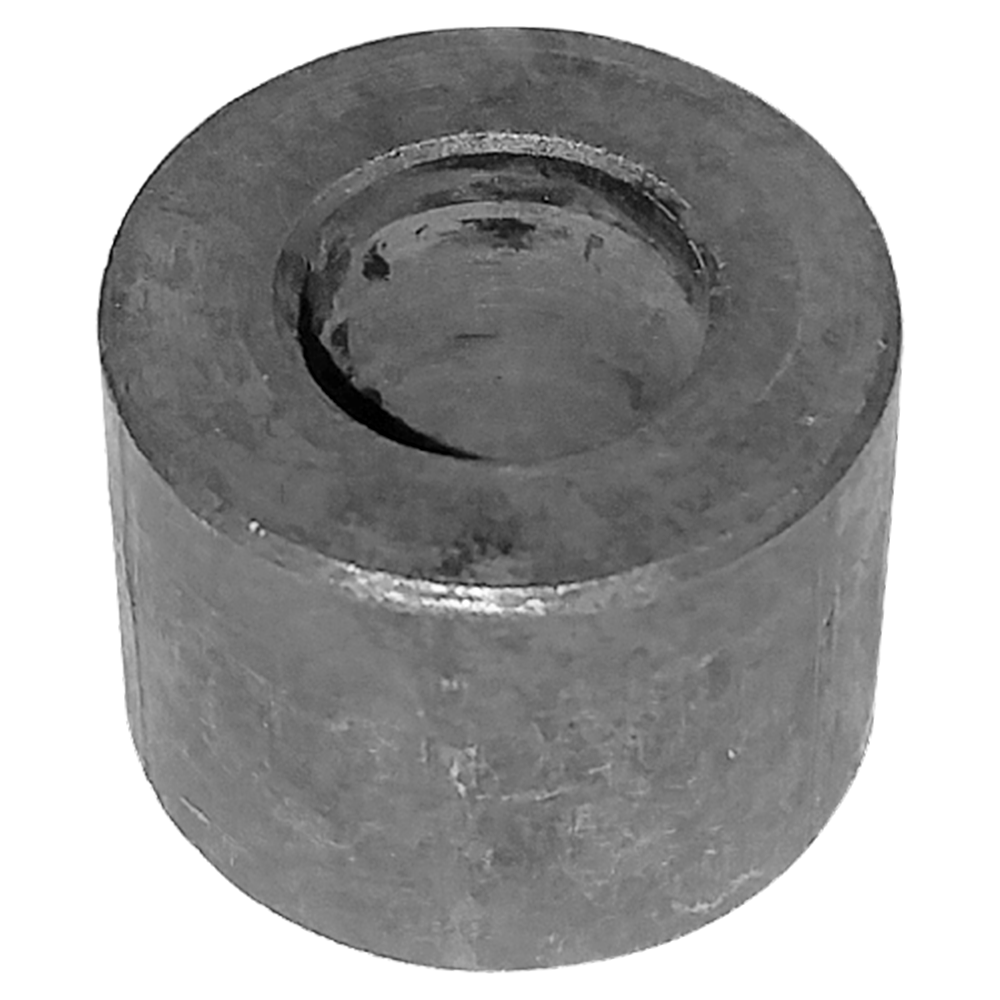

Spacer WX-23H
Spacer WX-23H
&
17 Pilot WX-17-19J
Pilot WX-17-19J
&
23 Plate WX-23AF
Plate WX-23AF
&
