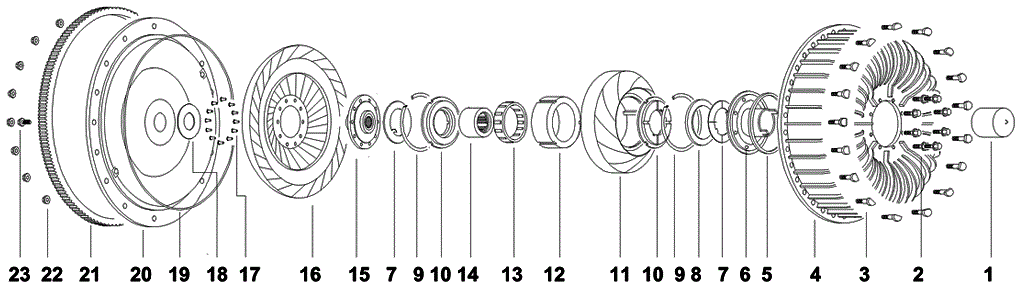

Torque Converter | Borg Warner | Bolted Aluminum, Industrial & Ford Passenger Applications

Ill.# Image Description Specification Part #
Rivet 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
Shim Early Type
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-20
Shim TW-2-20
& Early Type
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
Shim Early Type
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-30
Shim TW-2-30
& Early Type
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" &
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" &
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)

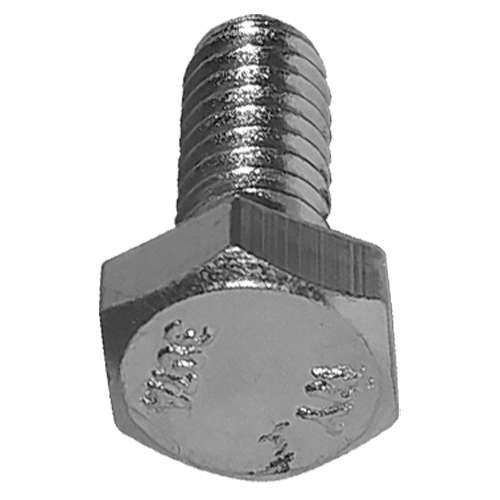

2 Bolt Hex Head, Hub 8 Pieces Required.
  • Dimensions: 1/4" x 20
 FX-21-8
Bolt FX-21-8
Hex Head, Hub & 8 Pieces Required.
  • Dimensions: 1/4" x 20

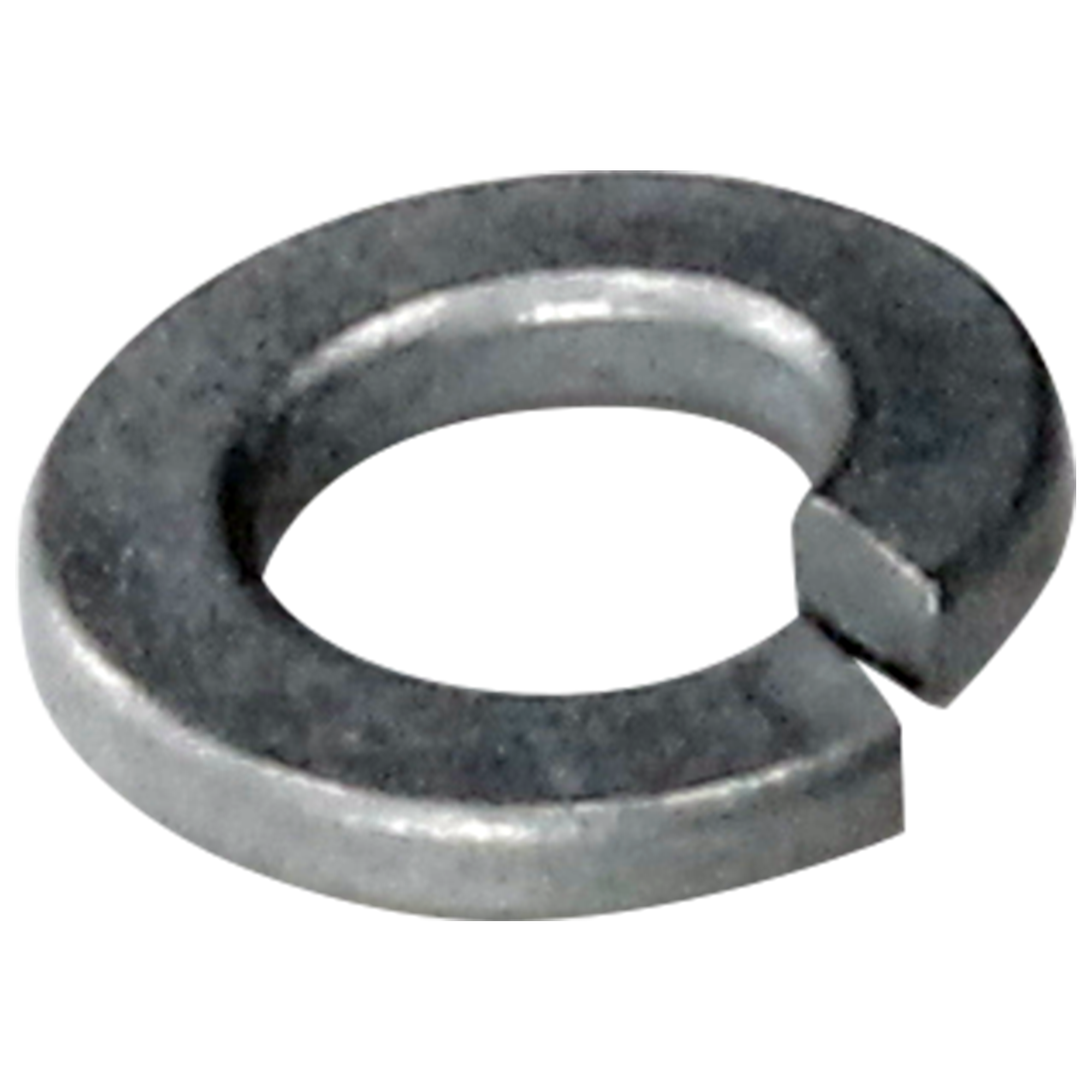

2 Washer Lock, 5/16" 8 Pieces Required. FX-21-9
Washer FX-21-9
Lock, 5/16" & 8 Pieces Required.
2 Impeller Hub 8 Bolt Holes
  • Journal Dia: 1.937"
  • Installed Height: 2.150"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 lugs
  • Flange Dia: 4.062"
  • Hardness: Rc 32-36
  • Inside Dia: 4.062"
  • Bolt-In, Flat Back
 FH-1-7GRC
Impeller Hub FH-1-7GRC
8 Bolt Holes &
  • Journal Dia: 1.937"
  • Installed Height: 2.150"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 lugs
  • Flange Dia: 4.062"
  • Hardness: Rc 32-36
  • Inside Dia: 4.062"
  • Bolt-In, Flat Back

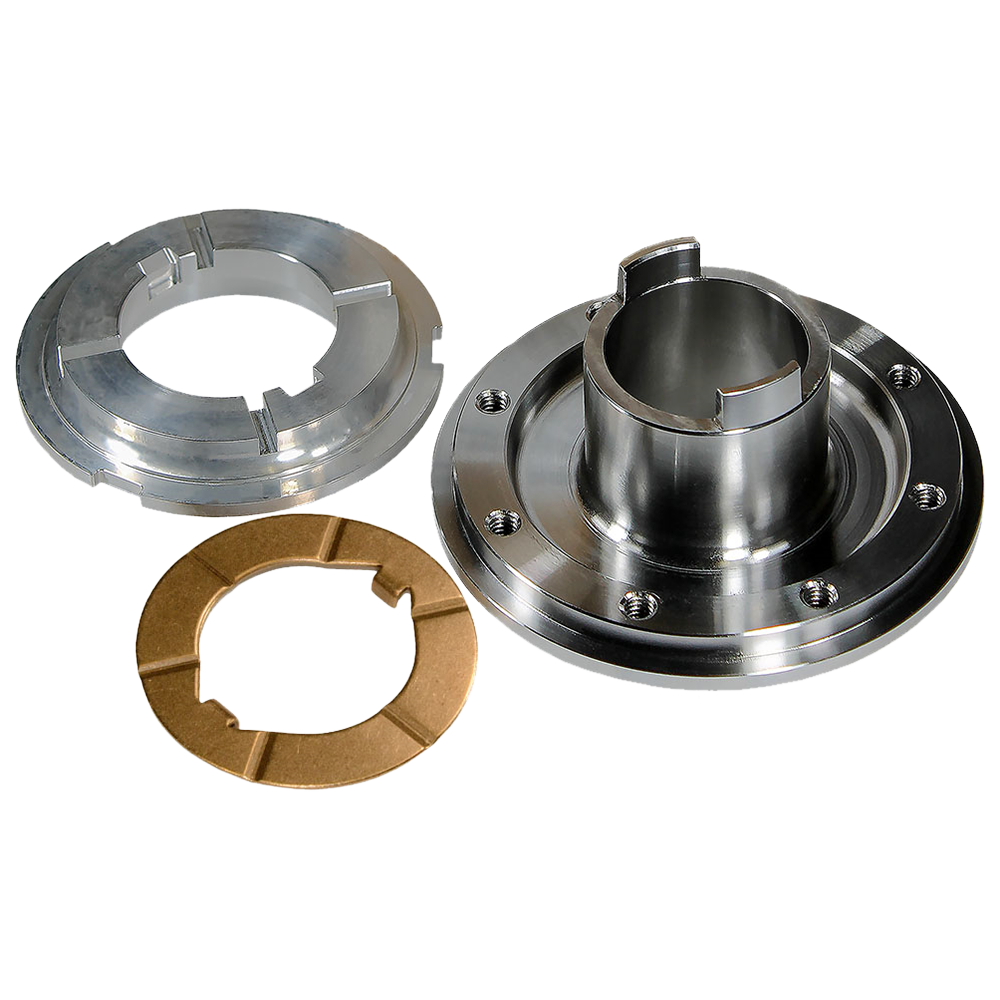

2 Impeller Hub Kit 8 Bolt Holes
  • Journal Dia: 1.937"
  • Installed Height: 2.150"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 lugs
  • Flange Dia: 4.062"
  • Inside Dia: 4.062"
  • Replaces Recessed Back Hub. Kit Consists Of: FH-1-7GRC, FW-3, FW-4
 FH-1-7K
Impeller Hub Kit FH-1-7K
8 Bolt Holes &
  • Journal Dia: 1.937"
  • Installed Height: 2.150"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 lugs
  • Flange Dia: 4.062"
  • Inside Dia: 4.062"
  • Replaces Recessed Back Hub. Kit Consists Of: FH-1-7GRC, FW-3, FW-4

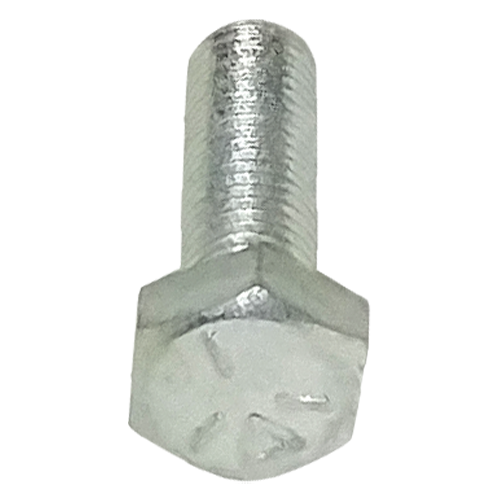

3 Bolt D Head, Cover 17-34 Pieces Required.
  • Dimensions: 5/16" x 24
  • Length: 1"
 FX-10-5
Bolt FX-10-5
D Head, Cover & 17-34 Pieces Required.
  • Dimensions: 5/16" x 24
  • Length: 1"
4 Impeller NPN-14-18-4
Impeller NPN-14-18-4
&
5 Seal Ring Square-Cut, 4-Lobe
  • Height: 0.137
  • Width: 0.137
  • Material: Fluorocarbon
  • Height Metric: 3.4798
  • Seal Type: Square-Cut, 4-Lobe
  • Outside Dia: 3.976
  • Outside Dia Metric: 100.9904
 FO-1-20
Seal Ring FO-1-20
Square-Cut, 4-Lobe &
  • Height: 0.137
  • Width: 0.137
  • Material: Fluorocarbon
  • Height Metric: 3.4798
  • Seal Type: Square-Cut, 4-Lobe
  • Outside Dia: 3.976
  • Outside Dia Metric: 100.9904
7 Washer Bronze, 2 lugs, HD 2 Pieces Required.
  • Thickness: .080"
  • Material: Bronze
  • Outside Dia: 2.91"
  • Inside Dia: 1.8"
 FW-3
Washer FW-3
Bronze, 2 lugs, HD & 2 Pieces Required.
  • Thickness: .080"
  • Material: Bronze
  • Outside Dia: 2.91"
  • Inside Dia: 1.8"
7 Washer 2 Pieces Required.
  • Thickness: .063"
  • Material: Bronze
  • Outside Dia: 2.91"
  • Inside Dia: 1.80"
 FW-3DW
Washer FW-3DW
& 2 Pieces Required.
  • Thickness: .063"
  • Material: Bronze
  • Outside Dia: 2.91"
  • Inside Dia: 1.80"
8 Shim
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
 FW-2-010
Shim FW-2-010
&
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
8 Shim
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
 FW-2-020
Shim FW-2-020
&
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
8 Shim
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
 FW-2-030
Shim FW-2-030
&
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
8 Shim Early
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
 TW-2-10
Shim TW-2-10
& Early
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
8 Shim
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X
Shim TW-2X
&
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
8 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X10
Shim TW-2X10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
8 Shim
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X30
Shim TW-2X30
&
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
8 Shim
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
 TW-2X-30
Shim TW-2X-30
&
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
8 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
Shim MW-2-10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
8 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
Shim MW-2-20
&
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
8 Shim
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
Shim MW-2-30
&
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
8 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
Shim MW-2-50
&
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
9 Snap Ring 2 Pieces Required.
  • Inside Dia: 3.600"
 FX-20-11
Snap Ring FX-20-11
& 2 Pieces Required.
  • Inside Dia: 3.600"
10 Stator Cap 2 Pieces Required.
  • Thickness: .73"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 1.78"
  • Casting#: C2AP-7937-D and C2VP-7937-A
 FW-4
Stator Cap FW-4
& 2 Pieces Required.
  • Thickness: .73"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 1.78"
  • Casting#: C2AP-7937-D and C2VP-7937-A
11 Stator For 12" Turbine FX-5E
Stator FX-5E
& For 12" Turbine
11 Stator
  • For 11-3/4" Turbine
 FX-5ES
Stator FX-5ES
&
  • For 11-3/4" Turbine
12 Outer Race (Cam) Stator
  • Outside Dia: 3.60"
 FX-15
Outer Race (Cam) FX-15
Stator &
  • Outside Dia: 3.60"
13 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-4
Sprag FC-6-4
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
13 Cam (Sprag Element) For FC-6-10 F-395
Cam (Sprag Element) F-395
& For FC-6-10
13 Cam (Sprag Element) For FC-6-10 F-407
Cam (Sprag Element) F-407
& For FC-6-10
13 Sprag
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
 FC-6
Sprag FC-6
&
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
13 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
 FC-6-1
Sprag FC-6-1
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
13 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
 FC-6-10
Sprag FC-6-10
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
13 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-3
Sprag FC-6-3
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
13 Sprag
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
 FC-6-9
Sprag FC-6-9
&
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
14 Inner Race Stator
  • Height: 1.360"
  • Internal Teeth: 29 (10 Removed)
  • Outside Dia: 2.156"
 FX-14
Inner Race FX-14
Stator &
  • Height: 1.360"
  • Internal Teeth: 29 (10 Removed)
  • Outside Dia: 2.156"
15 Turbine Hub
  • Height: 1.450
  • Internal Teeth: 29
  • Outside Dia: 3.8"
  • Low Type, With Shoulder
 FX-13-7
Turbine Hub FX-13-7
&
  • Height: 1.450
  • Internal Teeth: 29
  • Outside Dia: 3.8"
  • Low Type, With Shoulder

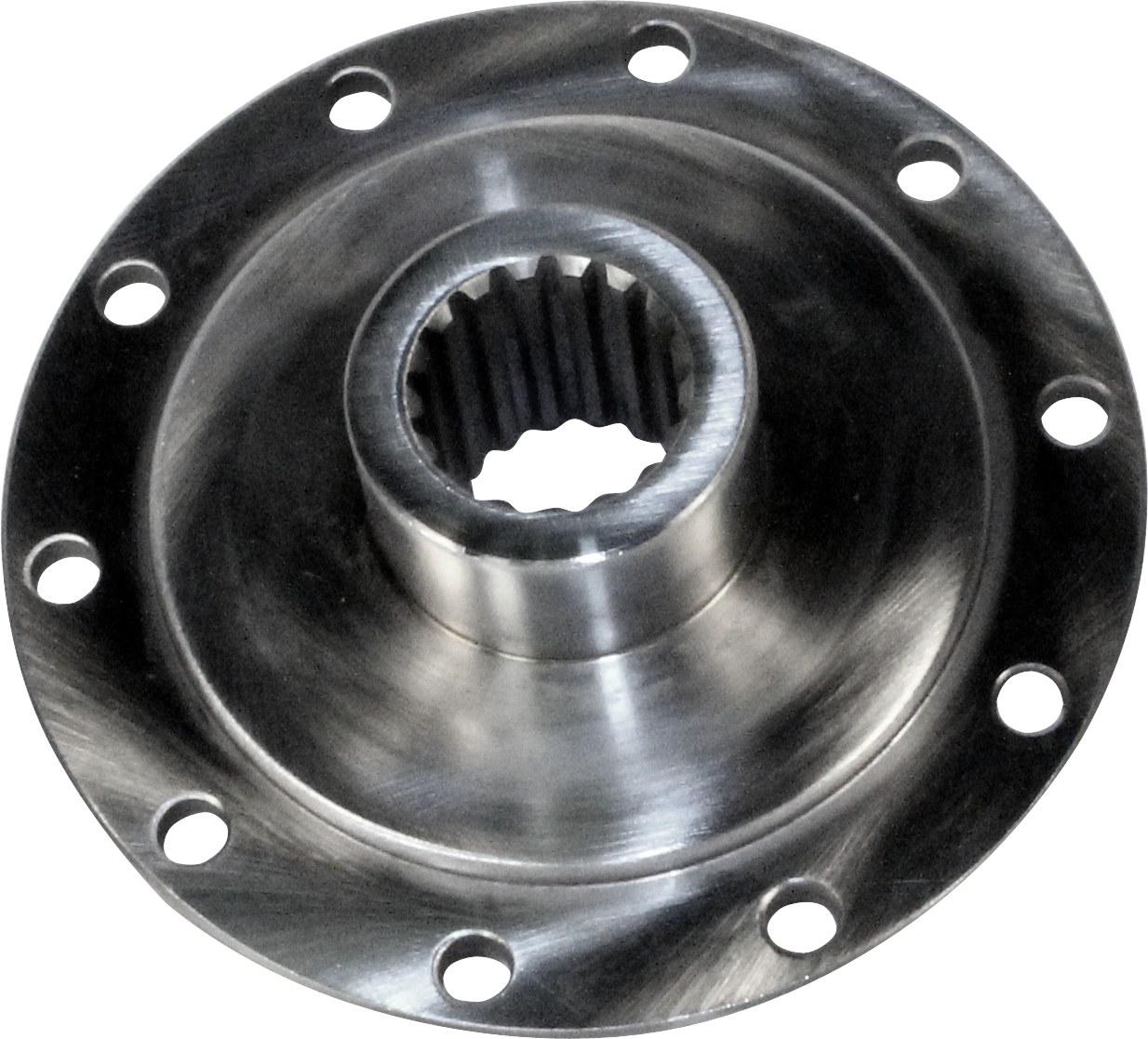

15 Turbine Hub
  • Height: 1.450
  • Internal Teeth: 17
  • Outside Dia: 3.8"
  • C2AP-7926C, PAZ-7926B
 FX-13-8
Turbine Hub FX-13-8
&
  • Height: 1.450
  • Internal Teeth: 17
  • Outside Dia: 3.8"
  • C2AP-7926C, PAZ-7926B
16 Turbine
  • Outside Dia: 11.750
 FX-8-11
Turbine FX-8-11
&
  • Outside Dia: 11.750
16 Turbine
  • Outside Dia: 12"
 FX-8-12
Turbine FX-8-12
&
  • Outside Dia: 12"
17 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
18 Turbine Washer Fiber
  • Thickness: .062"
  • Material: Fiber
  • Outside Dia: 2.43"
  • Inside Dia: 1.26"
 FW-9
Turbine Washer FW-9
Fiber &
  • Thickness: .062"
  • Material: Fiber
  • Outside Dia: 2.43"
  • Inside Dia: 1.26"
18 Turbine Washer
  • Thickness: 0.094"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"
 WW-9-7B
Turbine Washer WW-9-7B
&
  • Thickness: 0.094"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"
18 Turbine Washer
  • Thickness: .063"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"
 WW-9-7A
Turbine Washer WW-9-7A
&
  • Thickness: .063"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"
19 Seal Ring Square-Cut, Large Cover
  • Height: 0.125
  • Thickness: 0.126"
  • Width: 0.125
  • Thickness metric: 3.2mm
  • Material: Fluorocarbon
  • Height Metric: 3.175
  • Seal Type: Square-Cut
  • Outside Dia: 12.25
  • Inside Dia: 11.752
  • Outside Dia Metric: 311.15
 FO-1-21
Seal Ring FO-1-21
Square-Cut, Large Cover &
  • Height: 0.125
  • Thickness: 0.126"
  • Width: 0.125
  • Thickness metric: 3.2mm
  • Material: Fluorocarbon
  • Height Metric: 3.175
  • Seal Type: Square-Cut
  • Outside Dia: 12.25
  • Inside Dia: 11.752
  • Outside Dia Metric: 311.15
20 Front Cover NPN-14-18-20
Front Cover NPN-14-18-20
&

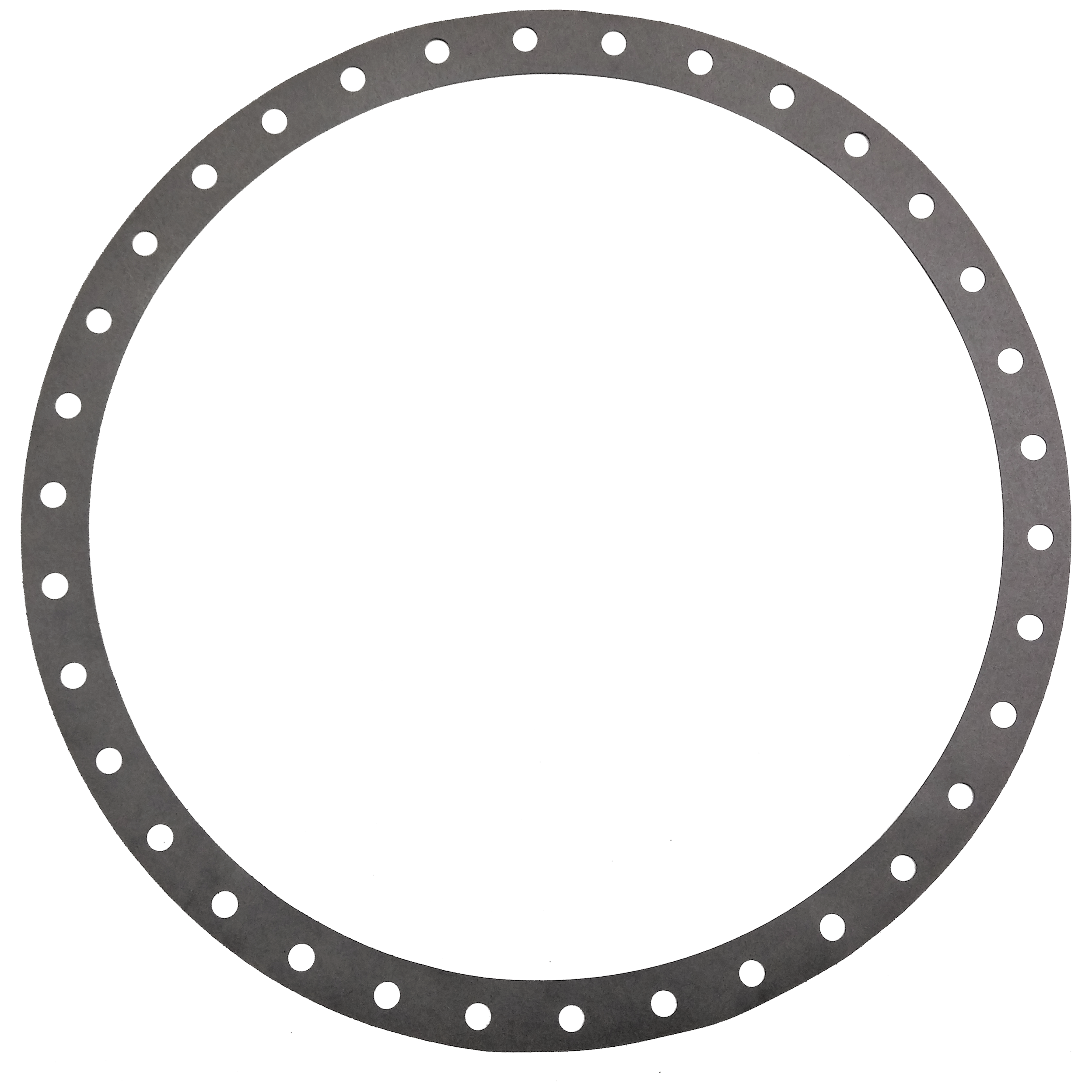

20_N.I. Gasket Cover, Paper, 34 Holes FO-1-22
Gasket FO-1-22
Cover, Paper, 34 Holes &
21 Ring Gear
  • Thickness: 0.370"
  • External Teeth: 146
  • Outside Dia: 14.81"
  • Inside Dia: 13.81"
  • (Machining Required)
 RG-146S
Ring Gear RG-146S
&
  • Thickness: 0.370"
  • External Teeth: 146
  • Outside Dia: 14.81"
  • Inside Dia: 13.81"
  • (Machining Required)
21 Ring Gear
  • External Teeth: 148
  • Outside Dia: 15.01"
  • Inside Dia: 14.012"
 RG-148S
Ring Gear RG-148S
&
  • External Teeth: 148
  • Outside Dia: 15.01"
  • Inside Dia: 14.012"
22 Nut Cover 17-34 Pieces Required.
  • Dimensions: 5/16"-24
  • Length: 0.330"
 FX-10-6
Nut FX-10-6
Cover & 17-34 Pieces Required.
  • Dimensions: 5/16"-24
  • Length: 0.330"
23 Drain Plug 1/8-27 NPT, PTFE, Wrap 2 Pieces Required. FX-11A
Drain Plug FX-11A
1/8-27 NPT, PTFE, Wrap & 2 Pieces Required.
23 Drain Plug 2 Pieces Required.
  • Allen socket drain plug for use with drilled converters.
 FX-11B
Drain Plug FX-11B
& 2 Pieces Required.
  • Allen socket drain plug for use with drilled converters.
23 Drain Plug 2 Pieces Required.
  • Material: Steel
  • 1/8-27 NPT
 FX-11
Drain Plug FX-11
& 2 Pieces Required.
  • Material: Steel
  • 1/8-27 NPT
