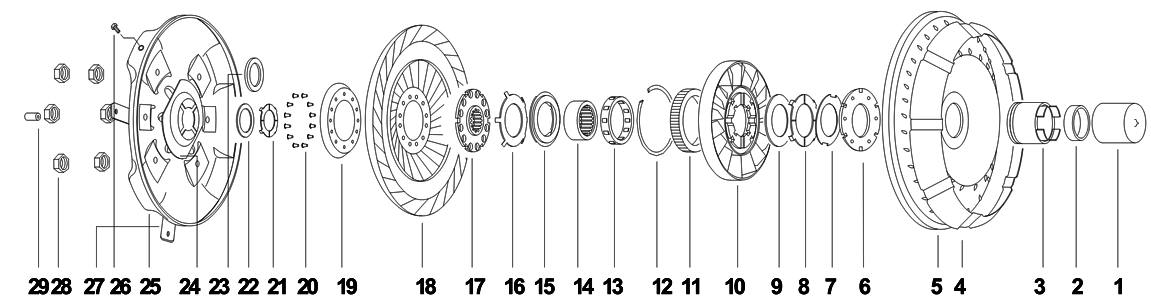

Torque Converter | Borg Warner | 11" Industrial

Ill.# Image Description Specification Part #
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" &
  • Color: Red
  • Fits 2" (50.8mm)
1 Hubcap Fits 2-3/8" (60.3mm). Length: 1/2"
  • Color: White
  • Fits 2-3/8" (60.3mm)
 MHC-W

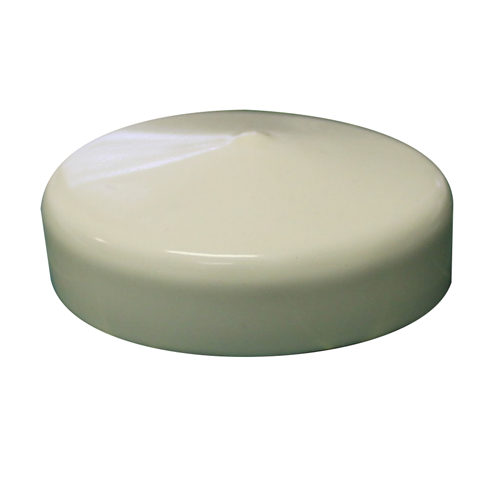

Hubcap MHC-W
Fits 2-3/8" (60.3mm). Length: 1/2" &
  • Color: White
  • Fits 2-3/8" (60.3mm)
2 Bushing Hub
  • Thickness: 0.625"
  • Housing Bore Dia: 1.941"
  • Shaft Dia: 1.809"
  • Material: Bronze
  • Outside Dia: 1.942"
  • Inside Dia: 1.812"
 WB-18BS
Bushing WB-18BS
Hub &
  • Thickness: 0.625"
  • Housing Bore Dia: 1.941"
  • Shaft Dia: 1.809"
  • Material: Bronze
  • Outside Dia: 1.942"
  • Inside Dia: 1.812"
3 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
 WH-1-13GRC
Impeller Hub WH-1-13GRC
&
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
3 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.68"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 WH-1-17G
Impeller Hub WH-1-17G
&
  • Journal Dia: 1.937"
  • Installed Height: 1.68"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs

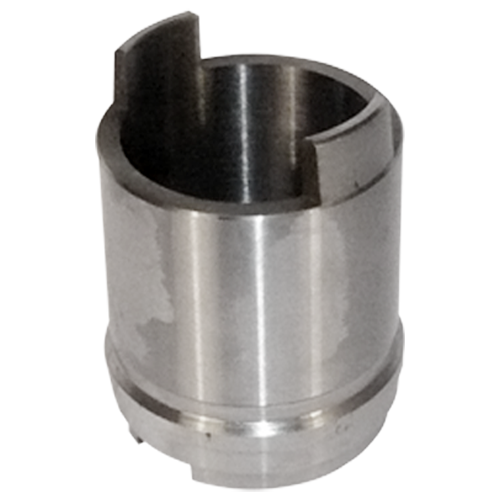

3 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.68"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
 WH-1-17GRC
Impeller Hub WH-1-17GRC
&
  • Journal Dia: 1.937"
  • Installed Height: 1.68"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
3 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
  • Hardness: Rc 32-36
 FH-1MTAGRC
Impeller Hub FH-1MTAGRC
&
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
  • Hardness: Rc 32-36
3 Impeller Hub Industrial WH-1-7
Impeller Hub WH-1-7
Industrial &
3 Impeller Hub
  • Hardness: Rc 32-36
 WH-1-7GRC
Impeller Hub WH-1-7GRC
&
  • Hardness: Rc 32-36
3 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 WH-1-13G
Impeller Hub WH-1-13G
&
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
3 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
 FH-1MTAG
Impeller Hub FH-1MTAG
&
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
3 Impeller Hub
  • Journal Dia: 1.937"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
 WH-1-19GRC
Impeller Hub WH-1-19GRC
&
  • Journal Dia: 1.937"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
3 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.939"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
 WH-1-23GRC
Impeller Hub WH-1-23GRC
&
  • Journal Dia: 1.937"
  • Installed Height: 1.939"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
3 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.093"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
 WH-1-5GRC
Impeller Hub WH-1-5GRC
&
  • Journal Dia: 1.937"
  • Installed Height: 2.093"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
3 Impeller Hub
  • Journal Dia: 2.125"
  • Installed Height: 1.820"
  • Pump Drive Type: 4 Lugs
  • Hardness: Rc 32-36
  • Inside Dia: 1.91"
 WH-1-3GRC
Impeller Hub WH-1-3GRC
&
  • Journal Dia: 2.125"
  • Installed Height: 1.820"
  • Pump Drive Type: 4 Lugs
  • Hardness: Rc 32-36
  • Inside Dia: 1.91"
3 Impeller Hub
  • Journal Dia: 2.125"
  • Installed Height: 1.820"
  • Pump Drive Type: Lugs
  • Inside Dia: 1.91"
 WH-1-8G
Impeller Hub WH-1-8G
&
  • Journal Dia: 2.125"
  • Installed Height: 1.820"
  • Pump Drive Type: Lugs
  • Inside Dia: 1.91"
3 Impeller Hub Industrial
  • Journal Dia: 2.125"
  • Installed Height: 1.855"
  • Pump Drive Type: 4 Lugs
  • Hardness: Rc 32-36
  • Inside Dia: 1.72"

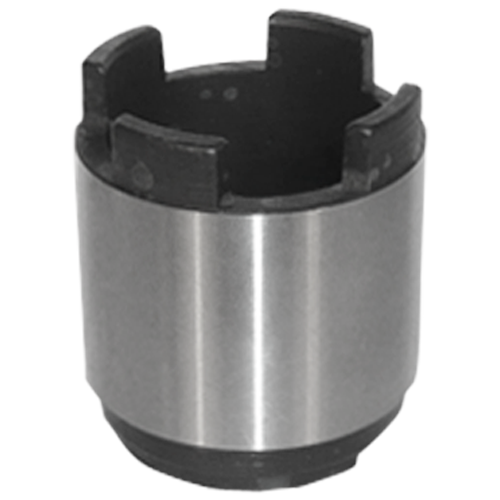

 WH-1-9GRC
Impeller Hub WH-1-9GRC
Industrial &
  • Journal Dia: 2.125"
  • Installed Height: 1.855"
  • Pump Drive Type: 4 Lugs
  • Hardness: Rc 32-36
  • Inside Dia: 1.72"
3 Impeller Hub Unfinished
  • Journal Dia: 2.125"
  • Installed Height: 1.855"
  • Pump Drive Type: 4 Lugs
  • Inside Dia: 1.72"
 WH-1-9
Impeller Hub WH-1-9
Unfinished &
  • Journal Dia: 2.125"
  • Installed Height: 1.855"
  • Pump Drive Type: 4 Lugs
  • Inside Dia: 1.72"
3 Impeller Hub
  • Journal Dia: 2.125"
  • Installed Height: 1.855"
  • Pump Drive Type: 4 Lugs
  • Inside Dia: 1.72"
 WH-1-9G
Impeller Hub WH-1-9G
&
  • Journal Dia: 2.125"
  • Installed Height: 1.855"
  • Pump Drive Type: 4 Lugs
  • Inside Dia: 1.72"
3 Impeller Hub
  • Journal Dia: 2.125"
  • Installed Height: 1.820"
  • Pump Drive Type: 4 Lugs
  • Inside Dia: 1.91"
 WH-1-3G
Impeller Hub WH-1-3G
&
  • Journal Dia: 2.125"
  • Installed Height: 1.820"
  • Pump Drive Type: 4 Lugs
  • Inside Dia: 1.91"
3 Impeller Hub
  • Journal Dia: 2.125"
  • Installed Height: 2.500"
  • External Teeth: 41
 MH-1-8G
Impeller Hub MH-1-8G
&
  • Journal Dia: 2.125"
  • Installed Height: 2.500"
  • External Teeth: 41
3 Impeller Hub
  • Journal Dia: 2.250"
  • Installed Height: 2.150"
  • Pump Drive Type: 2 lug (.68" Wide & .45" High)
  • Hardness: Rc 32-36
 MH-1-9GRC
Impeller Hub MH-1-9GRC
&
  • Journal Dia: 2.250"
  • Installed Height: 2.150"
  • Pump Drive Type: 2 lug (.68" Wide & .45" High)
  • Hardness: Rc 32-36
3 Impeller Hub
  • Journal Dia: 2.250"
  • Installed Height: 2.514"
  • Hub Mount: Butt
  • Pump Drive Type: 4 Lugs
  • Hardness: Rc 32-36
 WH-1-7SGRC
Impeller Hub WH-1-7SGRC
&
  • Journal Dia: 2.250"
  • Installed Height: 2.514"
  • Hub Mount: Butt
  • Pump Drive Type: 4 Lugs
  • Hardness: Rc 32-36
3 Impeller Hub
  • Journal Dia: 2.250"
  • Installed Height: 2.550"
  • Hub Mount: Thru
  • Pump Drive Type: 4 Lugs
 WH-1-7G
Impeller Hub WH-1-7G
&
  • Journal Dia: 2.250"
  • Installed Height: 2.550"
  • Hub Mount: Thru
  • Pump Drive Type: 4 Lugs

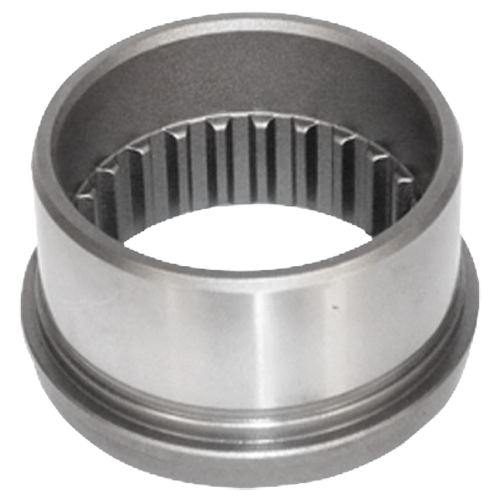

3 Impeller Hub
  • Journal Dia: 2.500"
  • Installed Height: 1.163"
  • Hub Mount: Thru
  • Internal Teeth: 25
  • Hardness: Rc 32-36
 WH-1-22GRC
Impeller Hub WH-1-22GRC
&
  • Journal Dia: 2.500"
  • Installed Height: 1.163"
  • Hub Mount: Thru
  • Internal Teeth: 25
  • Hardness: Rc 32-36
4 Shroud WX-19-1
Shroud WX-19-1
&
5 Impeller NPN-14-2-5
Impeller NPN-14-2-5
&
5_N.I. Vane WX-21-11
Vane WX-21-11
&
5_N.I. Vane Kit Impeller, Angle " L" & "M", 31 Pcs. WX-21-11K
Vane Kit WX-21-11K
Impeller, Angle " L" & "M", 31 Pcs. &
5_N.I. Vane WX-21-11SSJ
Vane WX-21-11SSJ
&
5_N.I. Kit Vane WX-21-11SSJK
Kit WX-21-11SSJK
Vane &

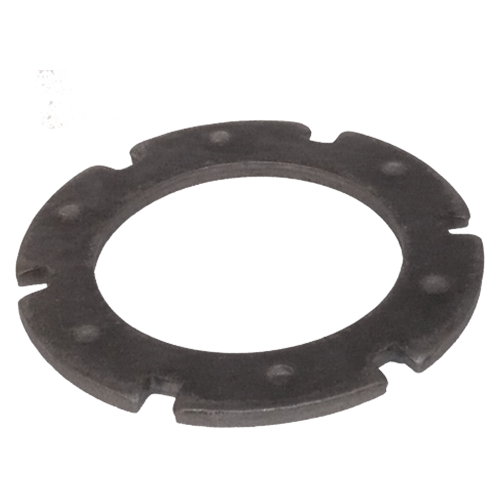

6 Plate Hub
  • Thickness: .17"
  • Outside Dia: 3.50"
  • Inside Dia: 2.30"
  • 6 Slots
 WX-21TX
Plate WX-21TX
Hub &
  • Thickness: .17"
  • Outside Dia: 3.50"
  • Inside Dia: 2.30"
  • 6 Slots
7 Washer Wear-Plate 2 Pieces Required.
  • Thickness: .045"
  • Material: Steel
  • Lug Count: 2
  • Lug Width: 0.481"
  • Outside Dia: 3.00"
  • Inside Dia: 1.87"
 WW-2-3
Washer WW-2-3
Wear-Plate & 2 Pieces Required.
  • Thickness: .045"
  • Material: Steel
  • Lug Count: 2
  • Lug Width: 0.481"
  • Outside Dia: 3.00"
  • Inside Dia: 1.87"
7 Washer
  • Thickness: .05"
  • Material: Steel
  • Tang Count: 6
  • Outside Dia: 3.06"
  • Inside Dia: 1.87"
 WW-2-1
Washer WW-2-1
&
  • Thickness: .05"
  • Material: Steel
  • Tang Count: 6
  • Outside Dia: 3.06"
  • Inside Dia: 1.87"
7 Washer Wear-Plate, Oval
  • Thickness: 0.042"
  • Length: 3.41"
  • Material: Steel
  • Outside Dia: 3.00"
  • Inside Dia: 1.88"

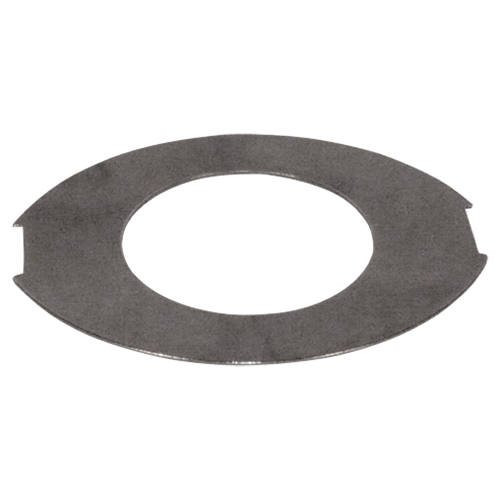

 WW-2-5
Washer WW-2-5
Wear-Plate, Oval &
  • Thickness: 0.042"
  • Length: 3.41"
  • Material: Steel
  • Outside Dia: 3.00"
  • Inside Dia: 1.88"
7 Washer Wear-Plate, Oval
  • Thickness: .063"
  • Length: 3.41"
  • Material: Steel
  • Outside Dia: 3.00"
  • Inside Dia: 1.88"

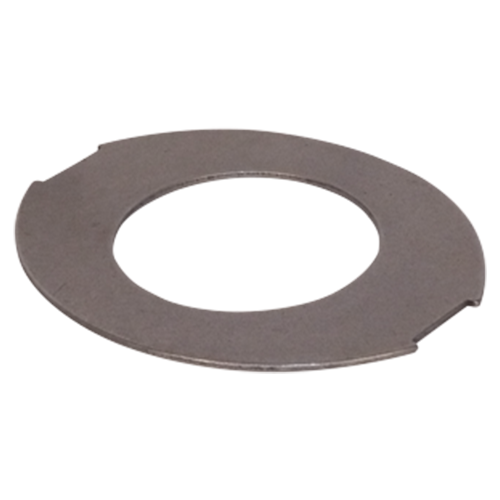

 WW-2-5A
Washer WW-2-5A
Wear-Plate, Oval &
  • Thickness: .063"
  • Length: 3.41"
  • Material: Steel
  • Outside Dia: 3.00"
  • Inside Dia: 1.88"
8 Washer
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
 TW-3
Washer TW-3
&
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
8 Washer
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3
Washer TW-3-3
&
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
8 Washer
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3AT
Washer TW-3-3AT
&
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
8 Washer
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3E
Washer TW-3-3E
&
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
9 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
Shim MW-2-10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
9 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
Shim MW-2-20
&
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
9 Shim
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
Shim MW-2-30
&
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
9 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
Shim MW-2-50
&
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
9 Shim
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
 FW-2-010
Shim FW-2-010
&
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
9 Shim
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
 FW-2-020
Shim FW-2-020
&
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
9 Shim
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
 FW-2-030
Shim FW-2-030
&
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
9 Shim
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
 TW-2-10
Shim TW-2-10
&
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
9 Shim
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X
Shim TW-2X
&
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
9 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X10
Shim TW-2X10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
9 Shim
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X30
Shim TW-2X30
&
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
9 Shim
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
 TW-2X-30
Shim TW-2X-30
&
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
9 Shim
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-20
Shim TW-2-20
&
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
9 Shim
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-30
Shim TW-2-30
&
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
10 Stator NPN-14-2-10
Stator NPN-14-2-10
&

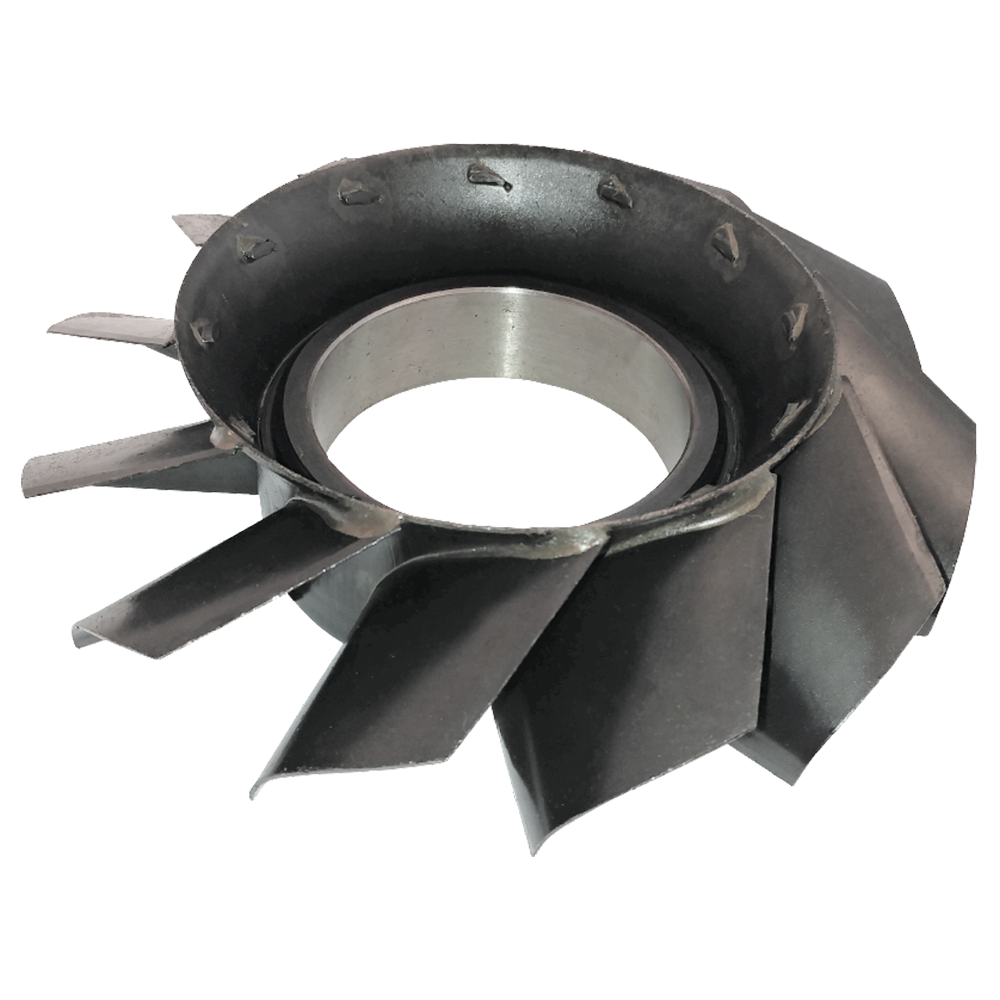

10 Stator WX-5-2
Stator WX-5-2
&

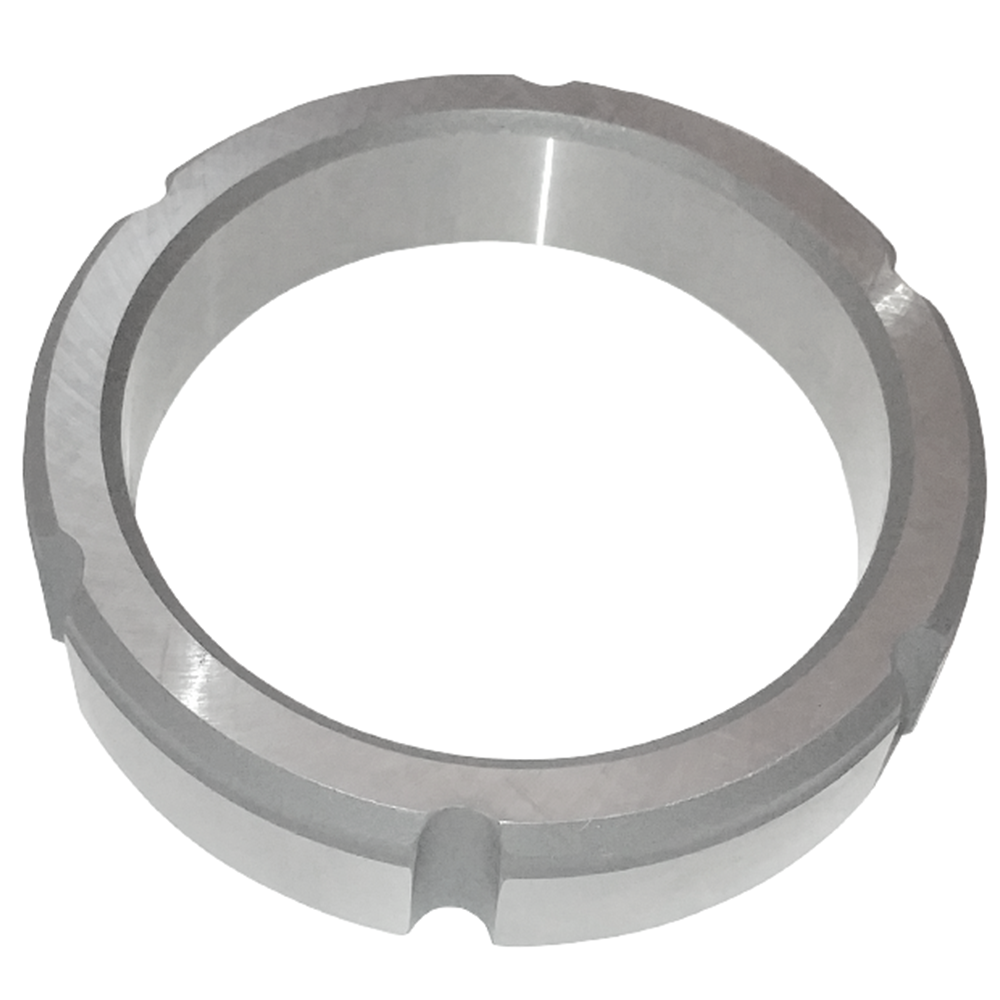

11 Outer Race (Cam) To Salvage Aluminum Stators WX-15
Outer Race (Cam) WX-15
To Salvage Aluminum Stators &
12 Snap Ring NPN-14-2-12
Snap Ring NPN-14-2-12
&
13 Sprag
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
 FC-6
Sprag FC-6
&
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
13 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
 FC-6-1
Sprag FC-6-1
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
13 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-3
Sprag FC-6-3
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
13 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-4
Sprag FC-6-4
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
13 Cam (Sprag Element) For FC-6-10 F-395
Cam (Sprag Element) F-395
& For FC-6-10
13 Cam (Sprag Element) For FC-6-10 F-407
Cam (Sprag Element) F-407
& For FC-6-10
13 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
 FC-6-10
Sprag FC-6-10
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
13 Sprag
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
 FC-6-9
Sprag FC-6-9
&
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
13 Sprag Narrow Type
  • Thickness: 0.500"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 1.957"
 WC-6
Sprag WC-6
Narrow Type &
  • Thickness: 0.500"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 1.957"
14 Inner Race Stator
  • Height: 1.031"
  • Internal Teeth: 29 (10 Removed)
  • Outside Dia: 2.156"
 WX-14-1
Inner Race WX-14-1
Stator &
  • Height: 1.031"
  • Internal Teeth: 29 (10 Removed)
  • Outside Dia: 2.156"
14 Inner Race Stator
  • Height: 1.035"
  • Internal Teeth: 19
  • Outside Dia: 2.156"
 WX-14-2
Inner Race WX-14-2
Stator &
  • Height: 1.035"
  • Internal Teeth: 19
  • Outside Dia: 2.156"
14 Inner Race Stator
  • Height: 0.930"
  • Internal Teeth: 19
  • Outside Dia: 2.156"

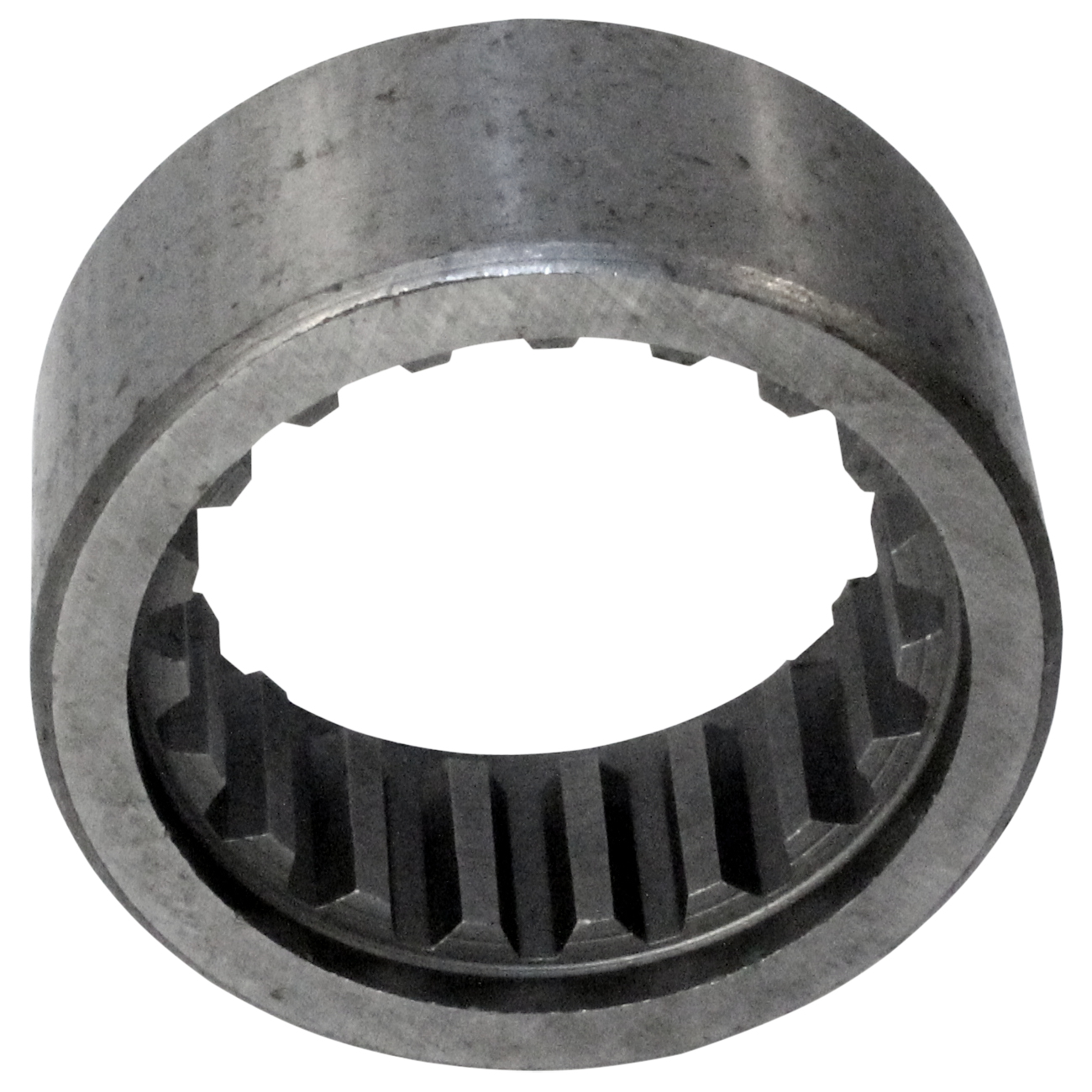

 WX-14-3
Inner Race WX-14-3
Stator &
  • Height: 0.930"
  • Internal Teeth: 19
  • Outside Dia: 2.156"
15 Washer
  • Thickness: .06"
  • Material: Bronze On Steel
  • Outside Dia: 2.90"
  • Inside Dia: 1.75"
 WW-3
Washer WW-3
&
  • Thickness: .06"
  • Material: Bronze On Steel
  • Outside Dia: 2.90"
  • Inside Dia: 1.75"
15 Stator Cap
  • Thickness: 0.31"
  • Material: Aluminum
  • Functional Thickness: 0.156"
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"
 WW-4
Stator Cap WW-4
&
  • Thickness: 0.31"
  • Material: Aluminum
  • Functional Thickness: 0.156"
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"
15 Stator Cap
  • Thickness: .31"
  • Material: Bronze
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"
 WW-4B
Stator Cap WW-4B
&
  • Thickness: .31"
  • Material: Bronze
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"

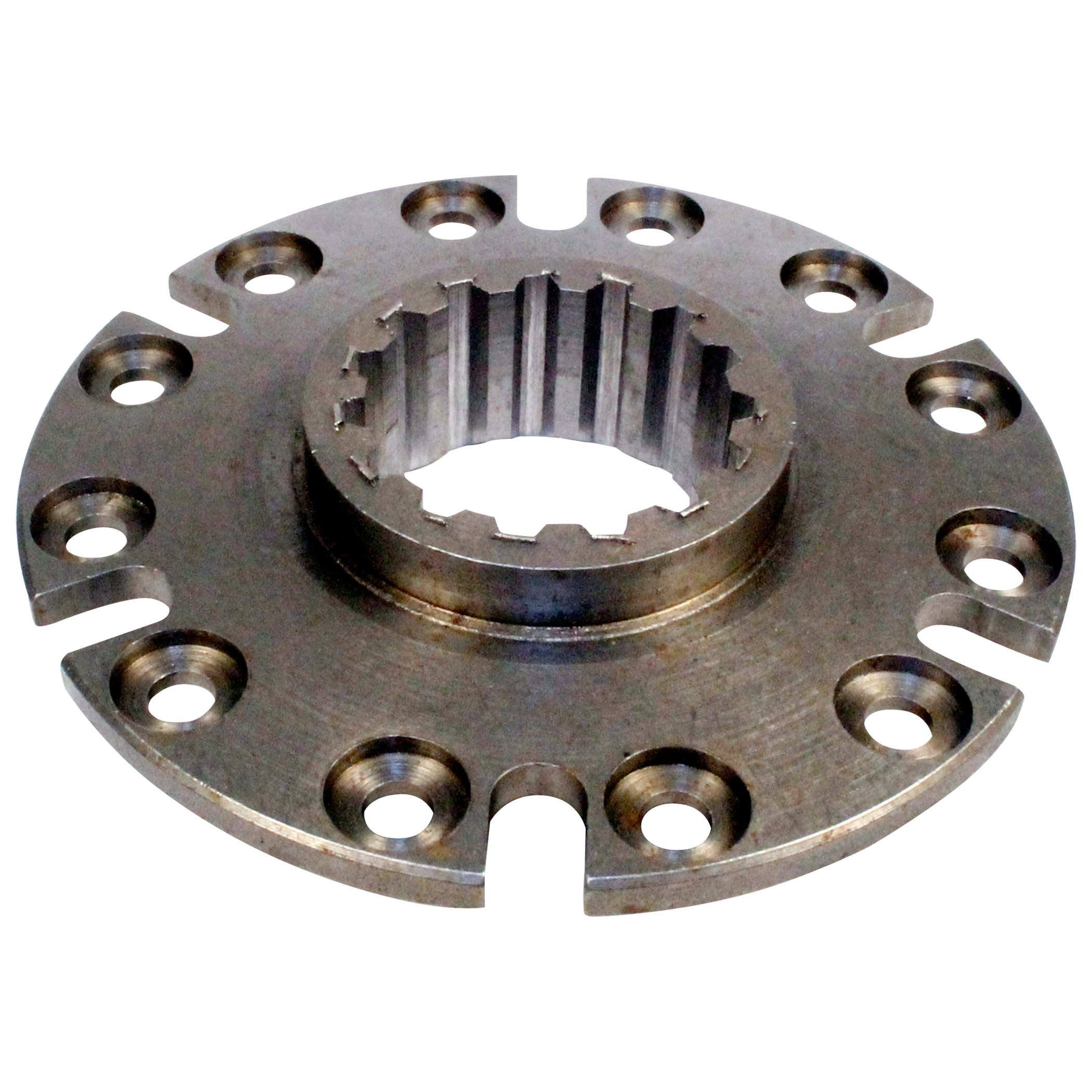

17 Turbine Hub
  • Height: 0.764
  • Internal Teeth: 15
  • Outside Dia: 3.45"
 WX-13-5
Turbine Hub WX-13-5
&
  • Height: 0.764
  • Internal Teeth: 15
  • Outside Dia: 3.45"
17 Turbine Hub
  • Height: 1.450
  • Internal Teeth: 17
  • Outside Dia: 3.45"

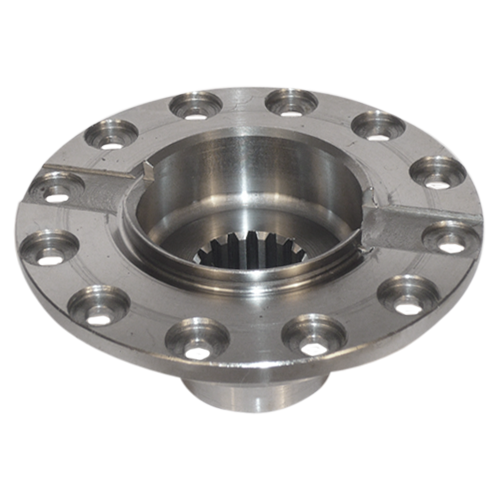

 WX-13-7
Turbine Hub WX-13-7
&
  • Height: 1.450
  • Internal Teeth: 17
  • Outside Dia: 3.45"
17 Turbine Hub
  • Outside Dia: 3.45"
 WX-13-7HT
Turbine Hub WX-13-7HT
&
  • Outside Dia: 3.45"
17 Turbine Hub
  • Internal Teeth: 19
 WX-13-6
Turbine Hub WX-13-6
&
  • Internal Teeth: 19
17 Turbine Hub
  • Internal Teeth: 19
  • Hardness: Heat-Treated (hardened)
  • Deep Cavity (.62" Depth)
 WX-13-6HT
Turbine Hub WX-13-6HT
&
  • Internal Teeth: 19
  • Hardness: Heat-Treated (hardened)
  • Deep Cavity (.62" Depth)
17 Turbine Hub WX-13-6J
Turbine Hub WX-13-6J
&
17 Turbine Hub
  • Internal Teeth: 19
  • Shallow Recess
 WX-13-6S
Turbine Hub WX-13-6S
&
  • Internal Teeth: 19
  • Shallow Recess
17 Turbine Hub
  • Internal Teeth: 19
  • Hardness: Heat-Treated (hardened)
  • Shallow Cavity (.38" Depth)
 WX-13-6SHT
Turbine Hub WX-13-6SHT
&
  • Internal Teeth: 19
  • Hardness: Heat-Treated (hardened)
  • Shallow Cavity (.38" Depth)
17 Turbine Hub
  • Internal Teeth: 20
  • Outside Dia: 3.45"

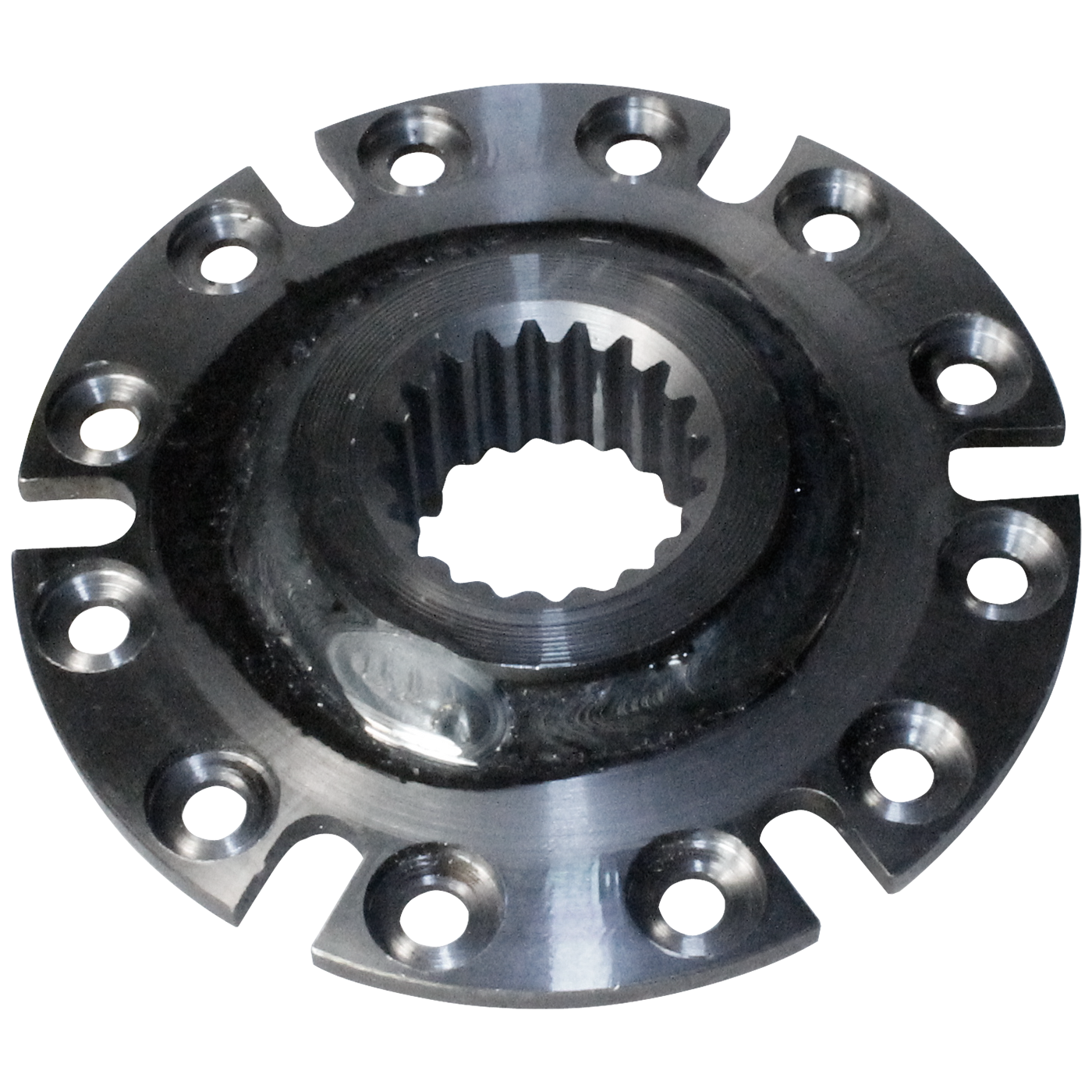

 WX-13-14
Turbine Hub WX-13-14
&
  • Internal Teeth: 20
  • Outside Dia: 3.45"
17 Turbine Hub
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.45"
 WX-13-14HT
Turbine Hub WX-13-14HT
&
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.45"
17 Turbine Hub
  • Internal Teeth: 26

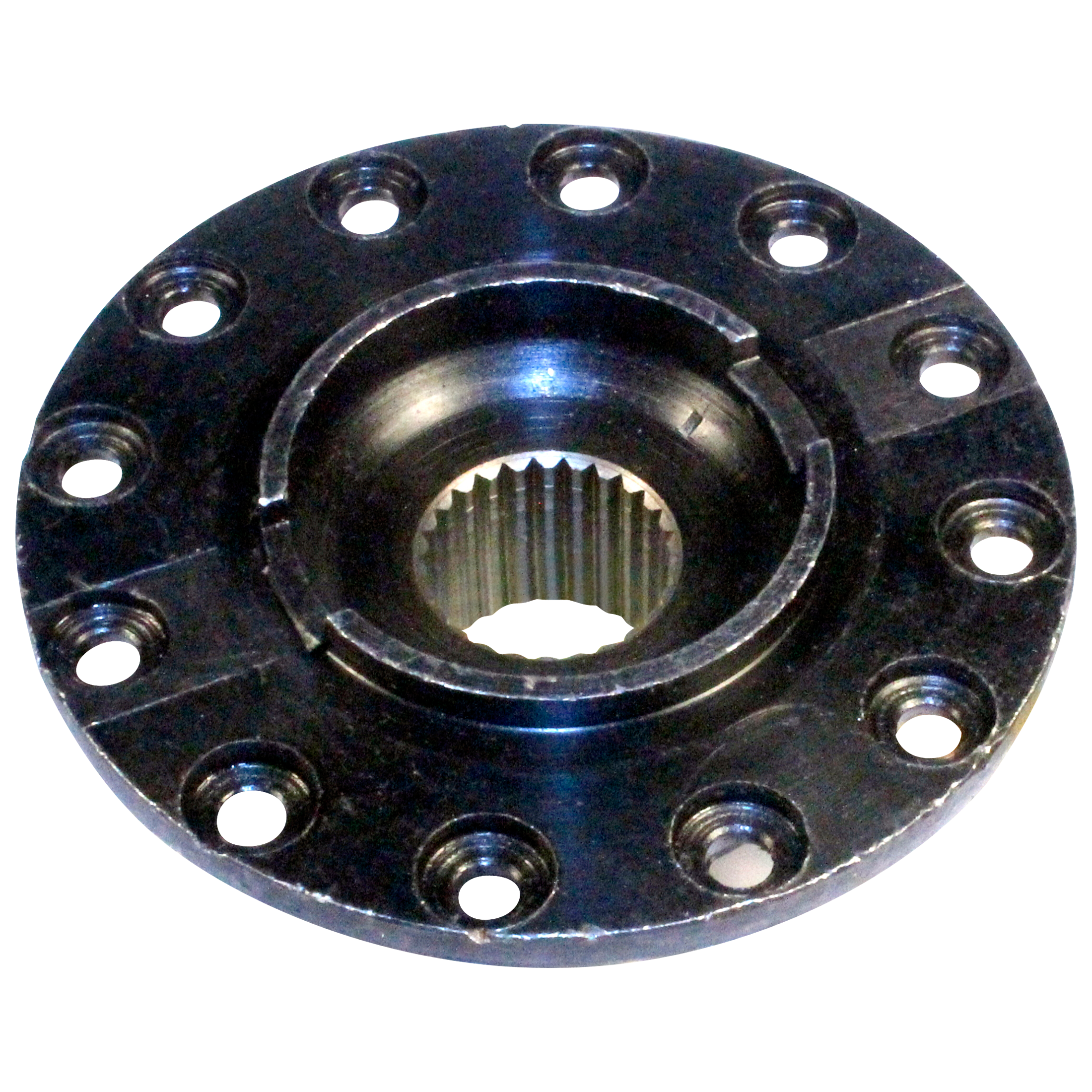

 WX-13-9
Turbine Hub WX-13-9
&
  • Internal Teeth: 26
17 Turbine Hub
  • Height: 1.220
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.45"
 WX-13-9HT
Turbine Hub WX-13-9HT
&
  • Height: 1.220
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.45"
17 Turbine Hub
  • Internal Teeth: 27

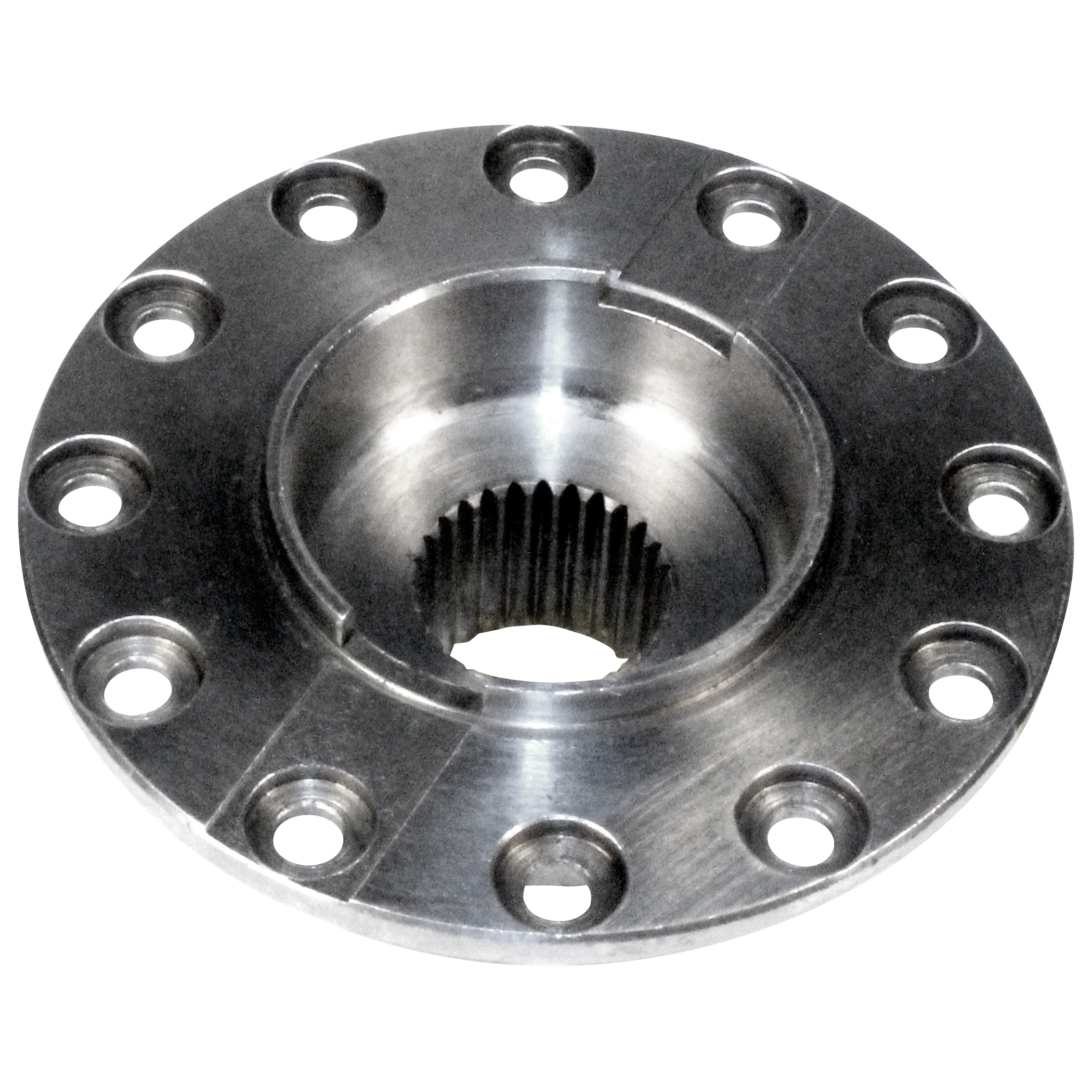

 WX-13-13
Turbine Hub WX-13-13
&
  • Internal Teeth: 27
17 Turbine Hub
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
 WX-13-13HT
Turbine Hub WX-13-13HT
&
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
17 Turbine Hub
  • Height: 1.450
  • Internal Teeth: 29
 WX-13-8
Turbine Hub WX-13-8
&
  • Height: 1.450
  • Internal Teeth: 29
17 Turbine Hub
  • Height: 1.450
  • Internal Teeth: 29
  • Hardness: Heat-Treated (hardened)

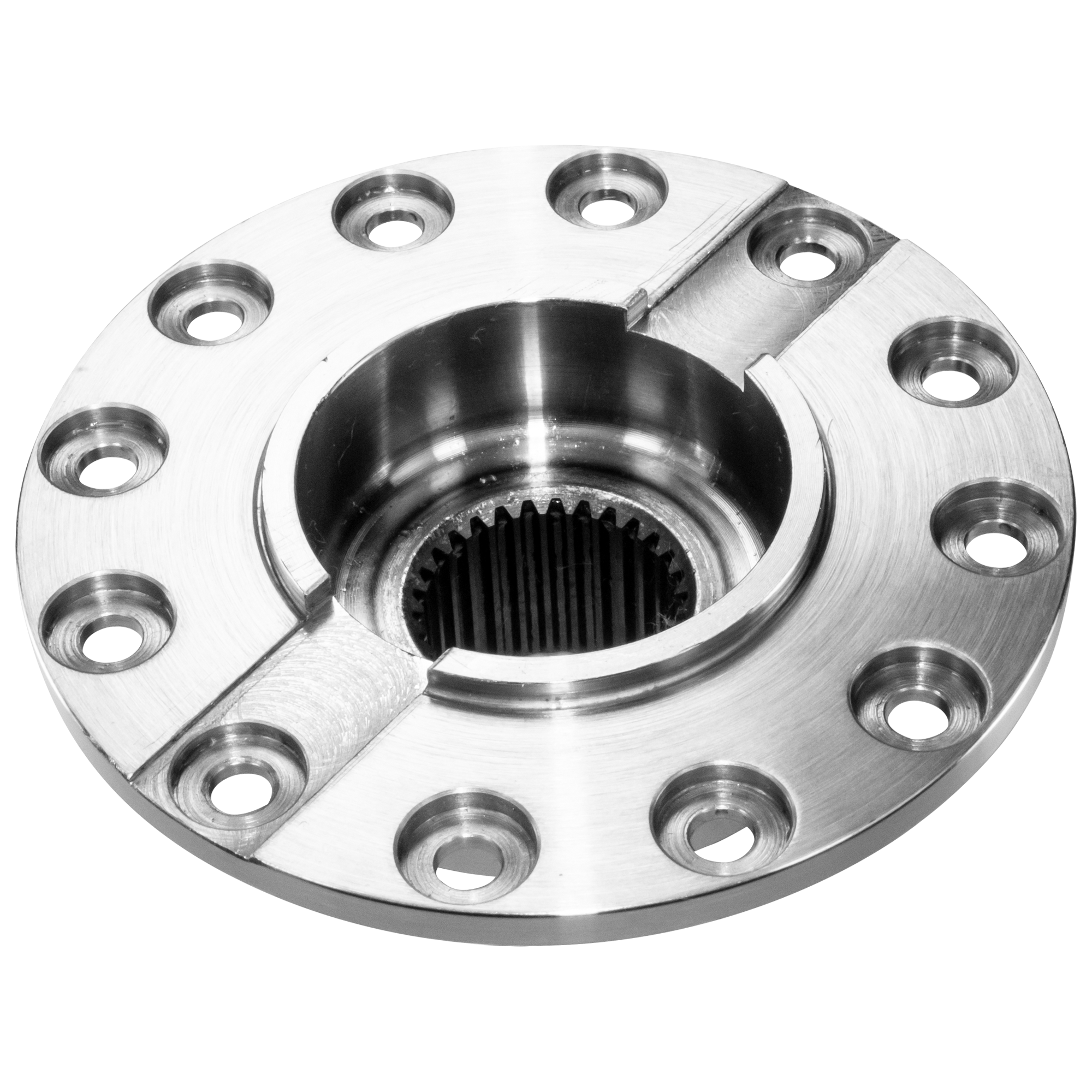

 WX-13-8HT
Turbine Hub WX-13-8HT
&
  • Height: 1.450
  • Internal Teeth: 29
  • Hardness: Heat-Treated (hardened)
17 Turbine Hub
  • Internal Teeth: 37

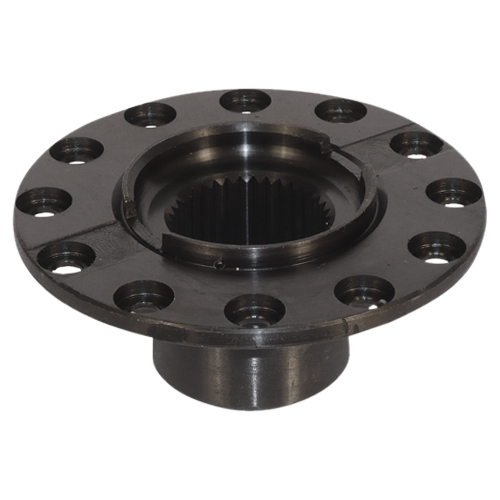

 WX-13-12
Turbine Hub WX-13-12
&
  • Internal Teeth: 37
17_N.I. Insert
  • Internal Teeth: 15
  • Hardness: Heat-Treated (hardened)
 WX-13-15HT
Insert WX-13-15HT
&
  • Internal Teeth: 15
  • Hardness: Heat-Treated (hardened)
17_N.I. Insert
  • Height: 0.880
  • Internal Teeth: 17
  • Outside Dia: 1.13"
 WX-13-17
Insert WX-13-17
&
  • Height: 0.880
  • Internal Teeth: 17
  • Outside Dia: 1.13"
17_N.I. Insert
  • Height: 1.030
  • Internal Teeth: 29
  • Outside Dia: 1.19"
 WX-13-29
Insert WX-13-29
&
  • Height: 1.030
  • Internal Teeth: 29
  • Outside Dia: 1.19"
18 Turbine NPN-14-2-18
Turbine NPN-14-2-18
&
18 Misc 12 Pieces Required. NPN-SPL
Misc NPN-SPL
& 12 Pieces Required.
18_N.I. Vane WX-8-11
Vane WX-8-11
&
18_N.I. Vane WX-8-11E
Vane WX-8-11E
&
18_N.I. Vane Kit 31 Pcs. WX-8-11K
Vane Kit WX-8-11K
31 Pcs. &
18_N.I. Retainer Vane, Core Ring WX-8R
Retainer WX-8R
Vane, Core Ring &
19 Plate Reinforcement, Beef Plate™ WX-8-1
Plate WX-8-1
Reinforcement, Beef Plate™ &
20 Rivet 12 Pieces Required.
  • Length: 0.218"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12
Rivet WX-12
& 12 Pieces Required.
  • Length: 0.218"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
20 Rivet 12 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12A
Rivet WX-12A
& 12 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
20 Rivet 12 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12B
Rivet WX-12B
& 12 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
20 Rivet 12 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12BS
Rivet WX-12BS
& 12 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
21 Turbine Washer 4 Lugs
  • Thickness: .06"
  • Material: Bronze
  • Outside Dia: 1.845"
  • Inside Dia: 1.38"
 WW-9
Turbine Washer WW-9
4 Lugs &
  • Thickness: .06"
  • Material: Bronze
  • Outside Dia: 1.845"
  • Inside Dia: 1.38"
22 Shim
  • Thickness: 0.012"
  • Outside Dia: 1.91"
  • Inside Dia: 1.45"
 WW-9-1
Shim WW-9-1
&
  • Thickness: 0.012"
  • Outside Dia: 1.91"
  • Inside Dia: 1.45"
23 Turbine Washer
  • Thickness: .063"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"
 WW-9-7A
Turbine Washer WW-9-7A
&
  • Thickness: .063"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"

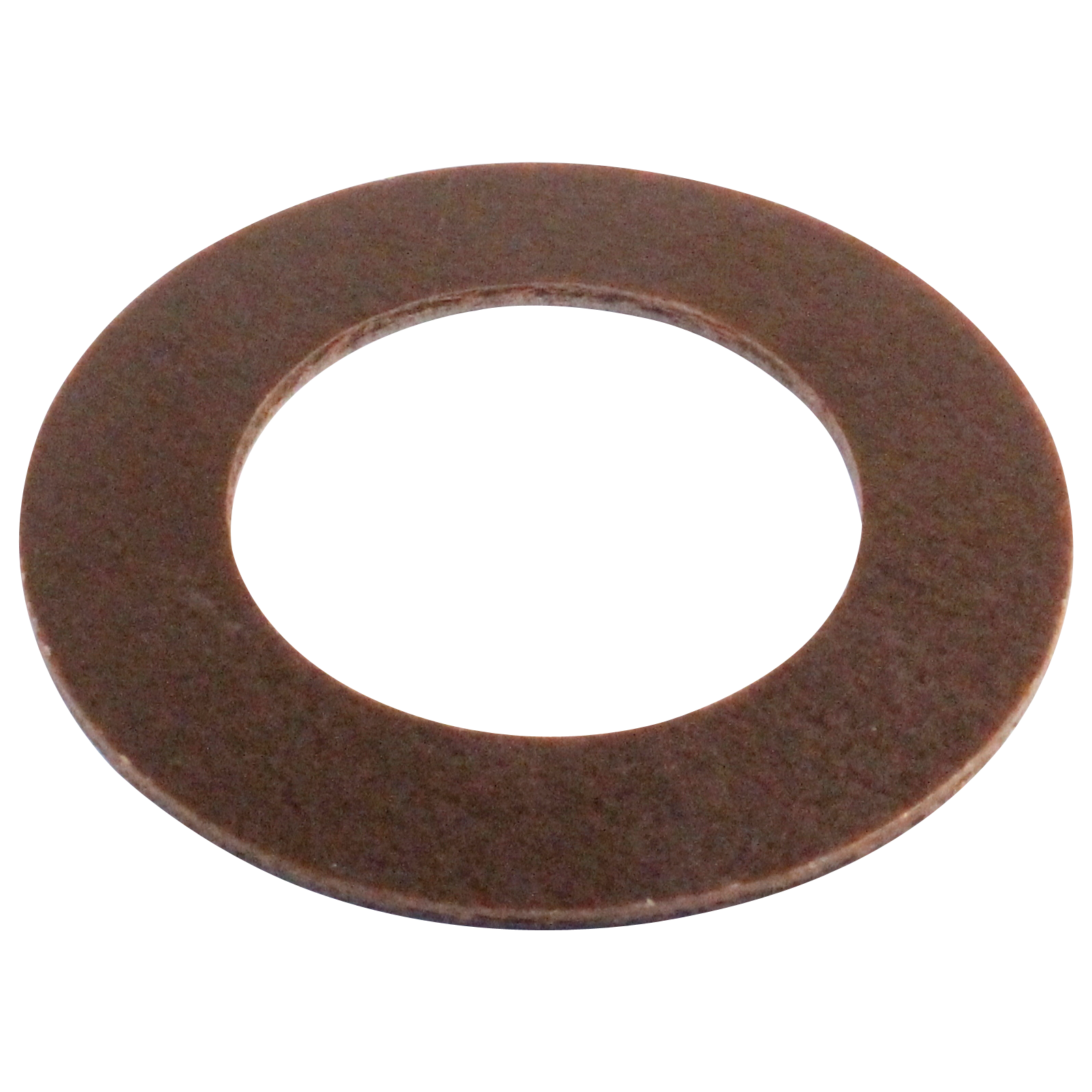

23 Turbine Washer
  • Thickness: 0.094"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"
 WW-9-7B
Turbine Washer WW-9-7B
&
  • Thickness: 0.094"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"
24 Bearing Race
  • With Slots, For Bronze Washers
 WW-22TB
Bearing Race WW-22TB
&
  • With Slots, For Bronze Washers
24 Thrust Plate No Slots For Fiber Washers
  • Height: .699"
 WX-22T
Thrust Plate WX-22T
No Slots For Fiber Washers &
  • Height: .699"

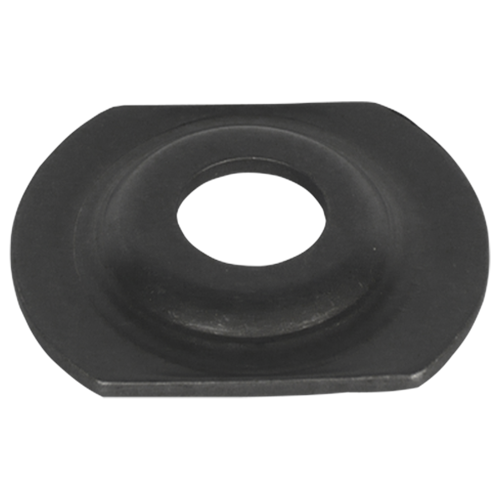

24 Thrust Plate
  • Height: .450"
  • No Slots For Fiber Washers
 WX-22TA
Thrust Plate WX-22TA
&
  • Height: .450"
  • No Slots For Fiber Washers
24 Thrust Plate Thrust Plates, Requires Machining After Welding
  • Height: .240"
  • No Slots For Fiber Washers
 WX-22TC
Thrust Plate WX-22TC
& Thrust Plates, Requires Machining After Welding
  • Height: .240"
  • No Slots For Fiber Washers
24 Thrust Plate WX-22TB
Thrust Plate WX-22TB
&
24_N.I. Plate Repair
  • Thickness: 0.094
  • Material: Steel
  • Outside Dia: 2.250
  • Inside Dia: 1.26"
 WW-9-8
Plate WW-9-8
Repair &
  • Thickness: 0.094
  • Material: Steel
  • Outside Dia: 2.250
  • Inside Dia: 1.26"
25 Front Cover NPN-14-2-25
Front Cover NPN-14-2-25
&
26 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
Drain Plug FX-11A
1/8-27 NPT, PTFE, Wrap &
26 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
Drain Plug FX-11
&
  • Material: Steel
  • 1/8-27 NPT
26 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
Drain Plug FX-11B
&
  • Allen socket drain plug for use with drilled converters.
26 Drain Plug 3/8- 24 Thread
  • 3/8- 24 Thread
 WX-11
Drain Plug WX-11
3/8- 24 Thread &
  • 3/8- 24 Thread
26_N.I. Gasket For WX-11
  • Inside Dia: 0.375"
 WX-11G
Gasket WX-11G
For WX-11 &
  • Inside Dia: 0.375"
27 Mounting Strap Flat, 3 Holes 6 Pieces Required. WX-10
Mounting Strap WX-10
Flat, 3 Holes & 6 Pieces Required.
27 Mounting Strap Curved For Conversion 6 Pieces Required. WX-10-6
Mounting Strap WX-10-6
Curved For Conversion & 6 Pieces Required.

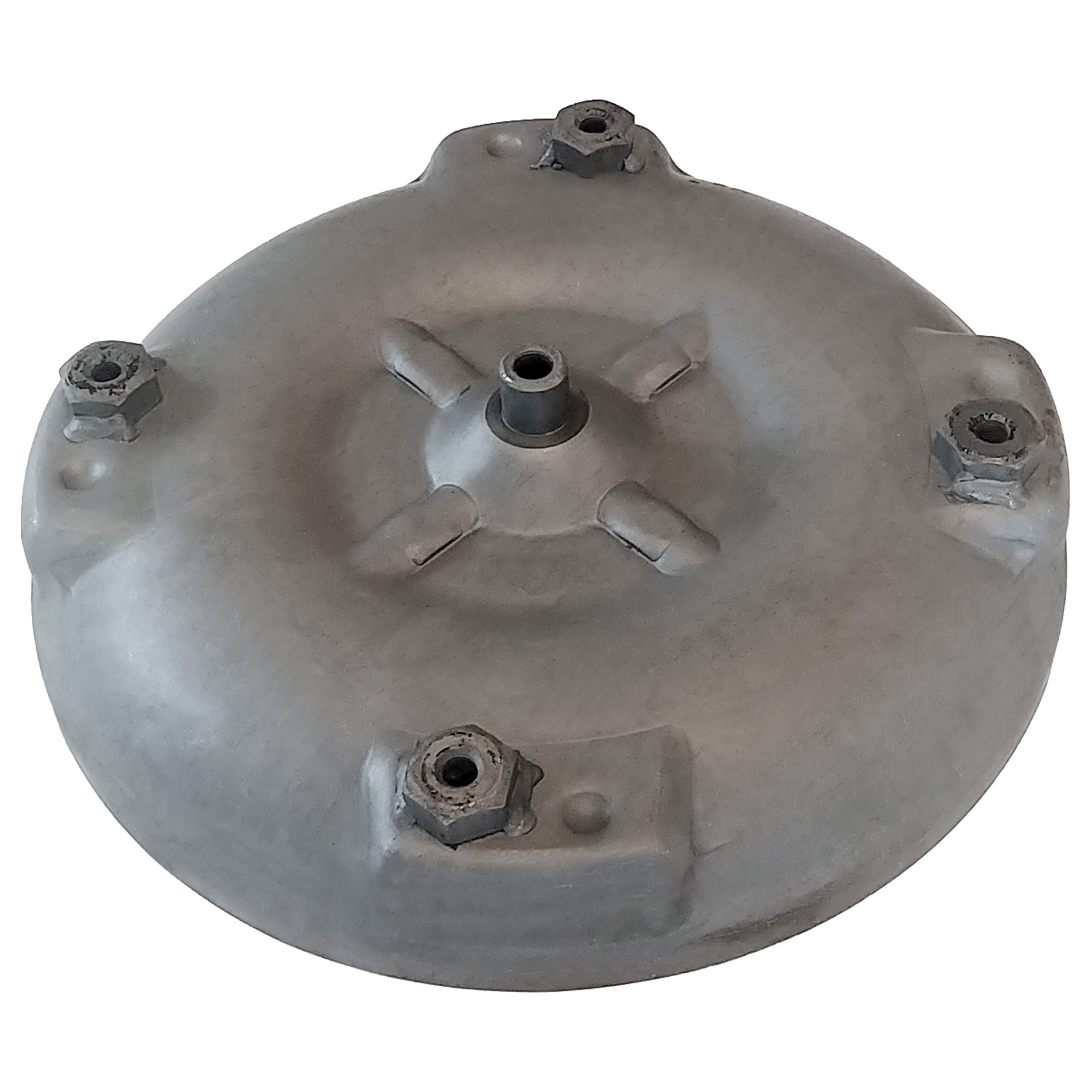

27 Cover WX-22H
Cover WX-22H
&
27_N.I. Rivet Standard 6 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.345"
  • Rivet Head Dia: 0.668"
 WX-10-1
Rivet WX-10-1
Standard & 6 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.345"
  • Rivet Head Dia: 0.668"
27_N.I. Rivet 6 Pieces Required.
  • Oversized
 WX-10-1A
Rivet WX-10-1A
& 6 Pieces Required.
  • Oversized
27_N.I. Strap Velvetdrive, Flat, 2 Holes, (Not For Converter) WX-10-4
Strap WX-10-4
Velvetdrive, Flat, 2 Holes, (Not For Converter) &
28 Nut Mounting
  • Dimensions: 3/8"-24, NF-2
  • Thickness: .375"
  • Length: 0.385"
 WX-10-2
Nut WX-10-2
Mounting &
  • Dimensions: 3/8"-24, NF-2
  • Thickness: .375"
  • Length: 0.385"
28 Nut WX-10-2A
Nut WX-10-2A
&
28 Nut
  • Dimensions: 1" Hex, 3/8-24 Thread, NF-2
  • Length: 0.500"
 WX-10-3
Nut WX-10-3
&
  • Dimensions: 1" Hex, 3/8-24 Thread, NF-2
  • Length: 0.500"

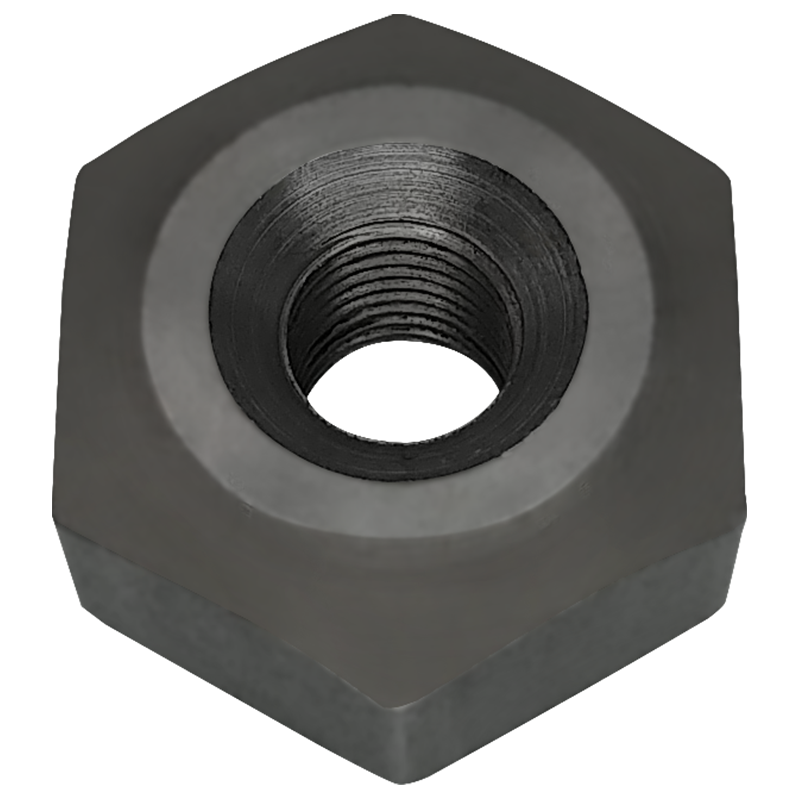

28 Nut WX-10-3A
Nut WX-10-3A
&
28 Nut
  • Dimensions: 1" Hex, 3/8"-24 Thread, NF-2
  • Length: 0.565"
 WX-10-8
Nut WX-10-8
&
  • Dimensions: 1" Hex, 3/8"-24 Thread, NF-2
  • Length: 0.565"
29 Pilot Finished
  • Outside Dia: 0.750
 WX-17-19
Pilot WX-17-19
Finished &
  • Outside Dia: 0.750
29 Pilot Unfinished
  • Outside Dia: 0.750
 WX-17-19X
Pilot WX-17-19X
Unfinished &
  • Outside Dia: 0.750
29 Pilot With Shoulder WX-17N
Pilot WX-17N
With Shoulder &

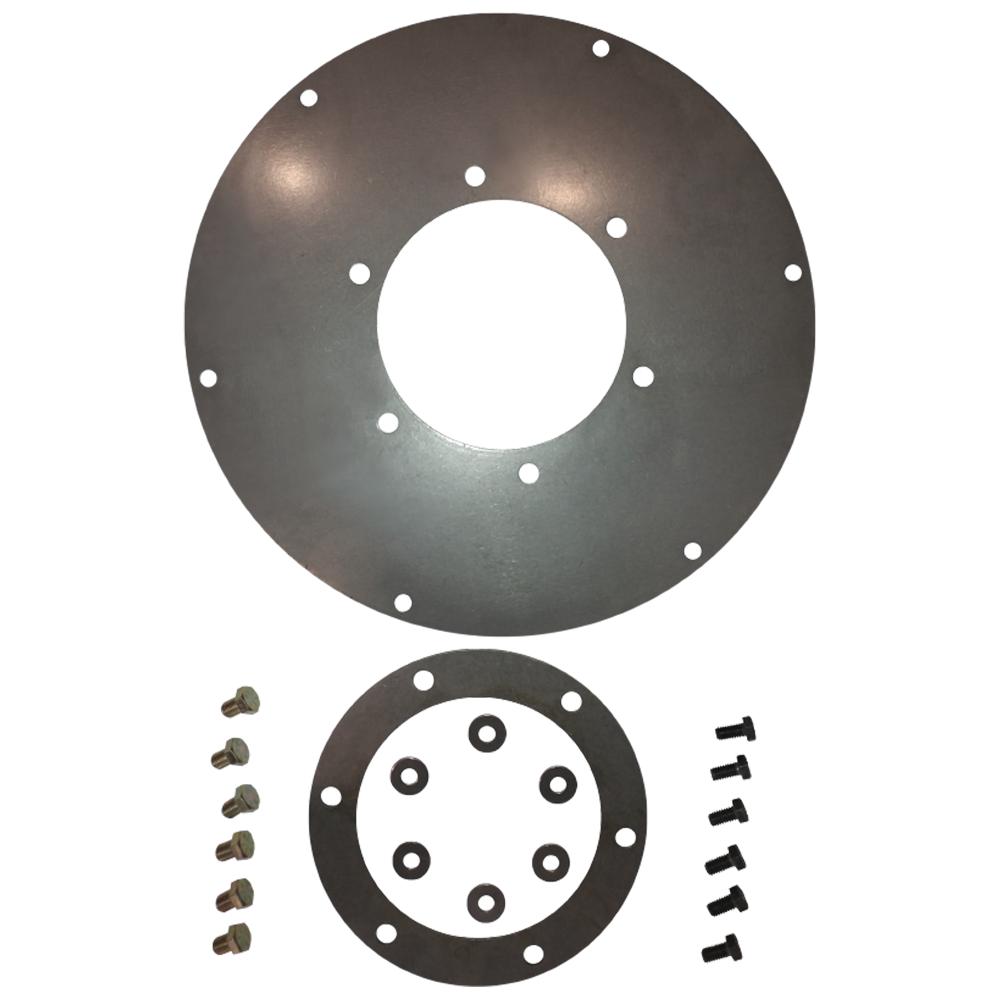

29_N.I. Drive Plate Kit For 6-3/8" Bolt Circle, 13.380" O.D WX-22-100K
Drive Plate Kit WX-22-100K
For 6-3/8" Bolt Circle, 13.380" O.D &
29_N.I. Drive Plate Plate Only
  • Outside Dia: 13.380"
 WX-22-100P
Drive Plate WX-22-100P
Plate Only &
  • Outside Dia: 13.380"
29_N.I. Drive Plate Kit For 6-3/8" Bolt Circle, 13.380" O.D
  • Hardness: Rc 32-36
 WX-22-100KHT
Drive Plate Kit WX-22-100KHT
For 6-3/8" Bolt Circle, 13.380" O.D &
  • Hardness: Rc 32-36
29_N.I. Drive Plate Plate Only
  • Hardness: Rc 32-36
  • Outside Dia: 13.380"
 WX-22-100PHT
Drive Plate WX-22-100PHT
Plate Only &
  • Hardness: Rc 32-36
  • Outside Dia: 13.380"
29_N.I. Drive Plate
  • Outside Dia: 15"
  • Blank, Without Holes
 WX-22-115
Drive Plate WX-22-115
&
  • Outside Dia: 15"
  • Blank, Without Holes
29_N.I. Drive Plate Part Reinforcing Ring Only
  • Outside Dia: 7.30"
 WX-22-100R
Drive Plate Part WX-22-100R
Reinforcing Ring Only &
  • Outside Dia: 7.30"
29_N.I. Drive Plate Part Bolt & Washer Kit WX-22BWK
Drive Plate Part WX-22BWK
Bolt & Washer Kit &
