Torque Converter | Allison | LCT-1000 (Captive Clutch)

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 2-1/4" (57.2mm). Length: 1-1/2"
  • Color: Black
  • Fits 2-1/4" (57.2mm)
 MHC-CL
Hubcap MHC-CL
Fits 2-1/4" (57.2mm). Length: 1-1/2" &
  • Color: Black
  • Fits 2-1/4" (57.2mm)
2 Impeller Hub
  • Journal Dia: 2.295"
  • Installed Height: 2.463"
  • Height: 2.680"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 4.000"
  • Hardness: Rc 32-36
  • Inside Dia: 4.000"
 SH-1-65GRC
Impeller Hub SH-1-65GRC
&
  • Journal Dia: 2.295"
  • Installed Height: 2.463"
  • Height: 2.680"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 4.000"
  • Hardness: Rc 32-36
  • Inside Dia: 4.000"
4 Bearing
  • Thickness: 0.251
  • Thickness metric: 6.38
  • Bearing type: Enclosed
  • Outside Dia: 3.855
  • Inside Dia: 2.644
  • Outside Dia Metric: 97.92
  • Inside Dia metric: 67.16

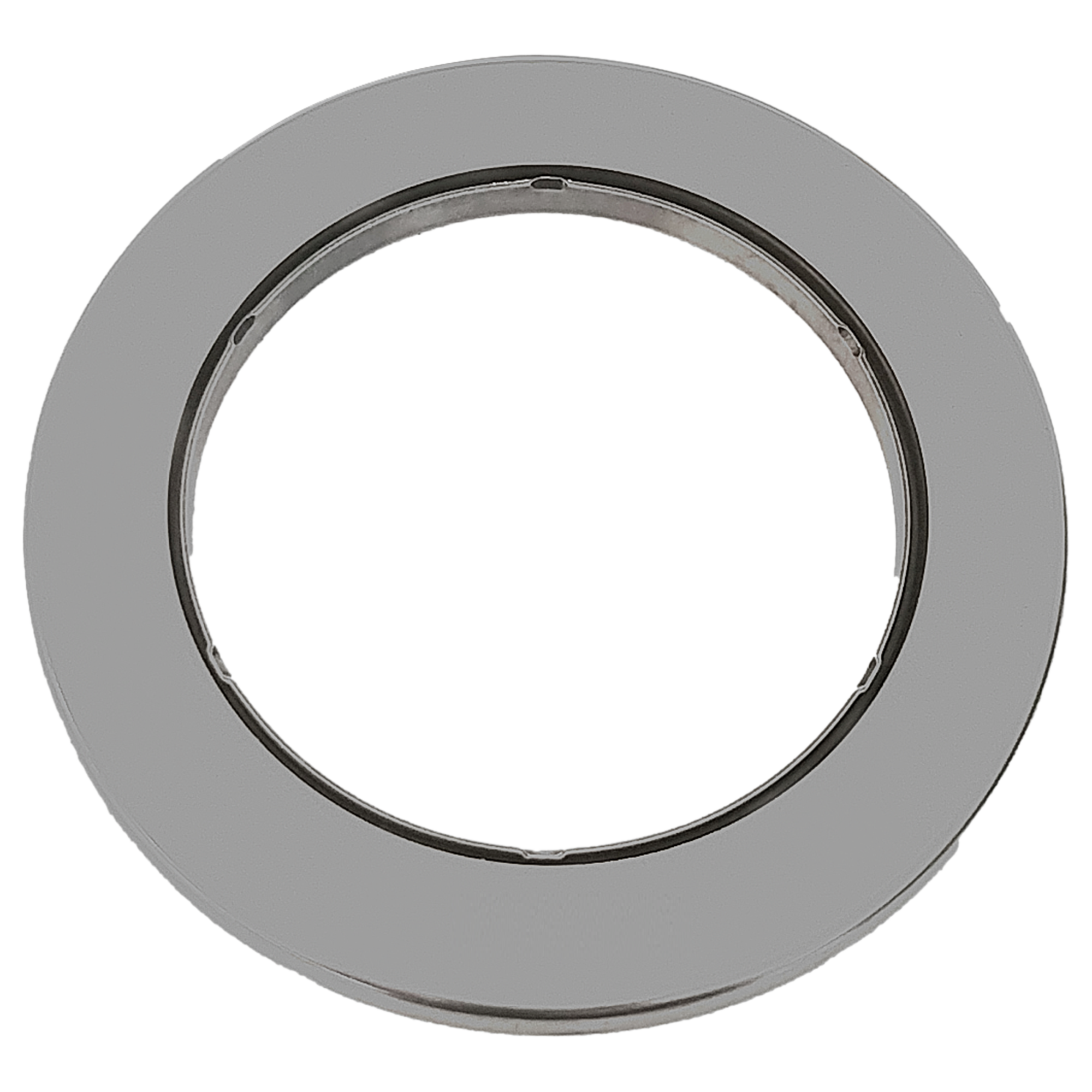

 SW-2-36
Bearing SW-2-36
&
  • Thickness: 0.251
  • Thickness metric: 6.38
  • Bearing type: Enclosed
  • Outside Dia: 3.855
  • Inside Dia: 2.644
  • Outside Dia Metric: 97.92
  • Inside Dia metric: 67.16
8 Roller Clutch (Sprag) Allison 1000/2000/2400, 2010-Up SC-6-1
Roller Clutch (Sprag) SC-6-1
& Allison 1000/2000/2400, 2010-Up
10 Stator Cap
  • Thickness: 0.390"
  • Material: Aluminum
  • Functional Thickness: 0.244"
  • Outside Dia: 4.167"
  • Inside Dia: 2.280"
 SW-4-33
Stator Cap SW-4-33
&
  • Thickness: 0.390"
  • Material: Aluminum
  • Functional Thickness: 0.244"
  • Outside Dia: 4.167"
  • Inside Dia: 2.280"
15 Seal Ring 2010 - 2012
  • Height: 0.1
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.54
  • Seal Type: Solid
  • Outside Dia: 3.16
  • Outside Dia Metric: 80.264
 SO-23-44
Seal Ring SO-23-44
& 2010 - 2012
  • Height: 0.1
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.54
  • Seal Type: Solid
  • Outside Dia: 3.16
  • Outside Dia Metric: 80.264
19 Rivet 6 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12B
Rivet WX-12B
& 6 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
19 Rivet 6 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12BS
Rivet WX-12BS
& 6 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
25 Lining (Friction Ring,Wafer) Allison 1000/2000/2400, 2010-Up
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.233"
  • Inside Dia: 10.135"
 SX-23-65
Lining (Friction Ring,Wafer) SX-23-65
& Allison 1000/2000/2400, 2010-Up
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.233"
  • Inside Dia: 10.135"
