Torque Converter | Allison | AT-500

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
Misc NPN-SPL
&
2 Impeller Hub
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
 SH-1-14GRCMA
Impeller Hub SH-1-14GRCMA
&
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 1.950"
  • Height: 2.25
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.15"
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
 SH-1-23GRC
Impeller Hub SH-1-23GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 1.950"
  • Height: 2.25
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.15"
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.060"
  • Height: 2.281
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.120"
  • Hardness: Rc 60-62
  • Inside Dia: 4.15"
  • Use Bearing SW-2-14, AT-540
 SH-1-14GRC
Impeller Hub SH-1-14GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.060"
  • Height: 2.281
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.120"
  • Hardness: Rc 60-62
  • Inside Dia: 4.15"
  • Use Bearing SW-2-14, AT-540
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.47"
  • Height: 2.640"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

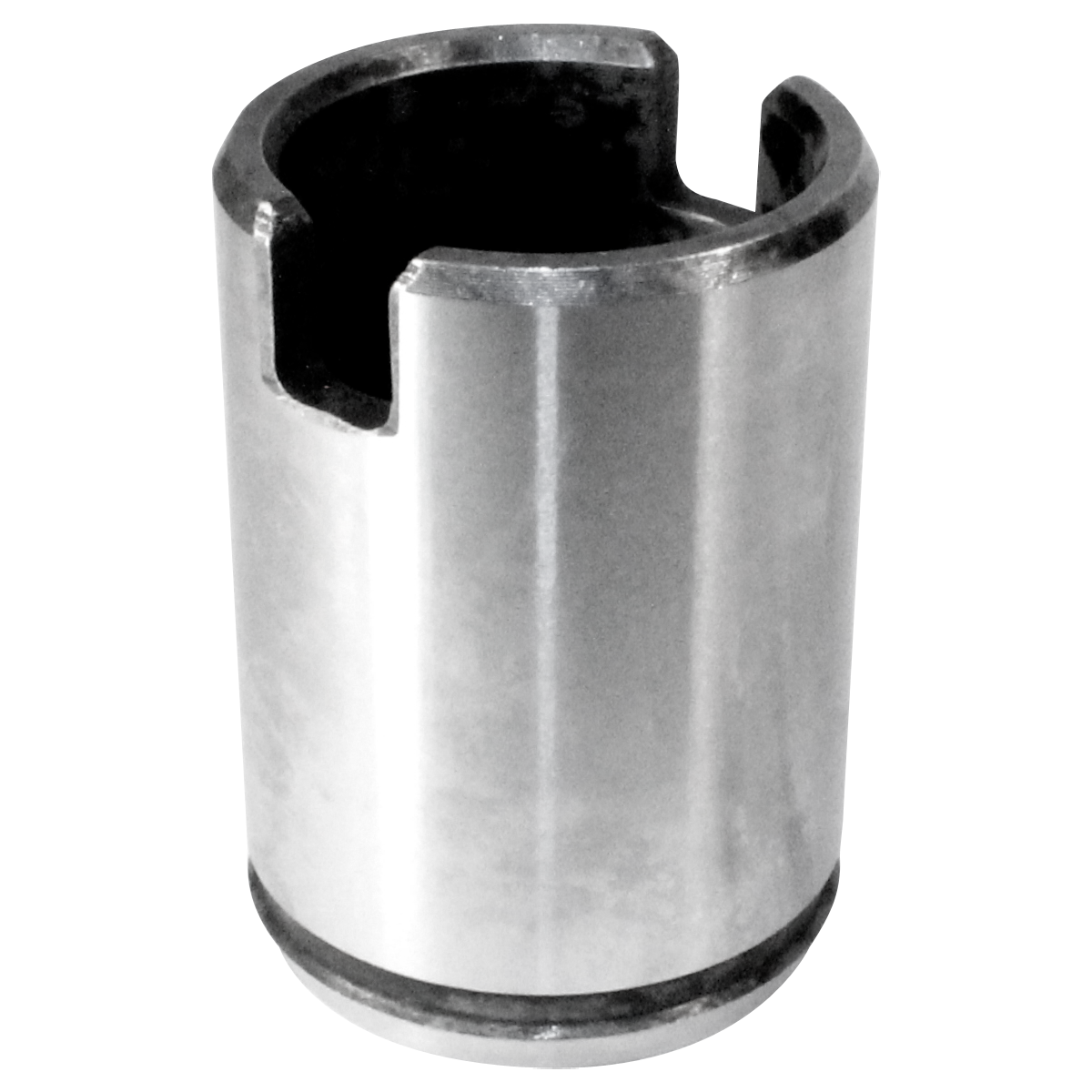

 SH-1-58GRC
Impeller Hub SH-1-58GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.47"
  • Height: 2.640"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub O.E. Replacement
  • Journal Dia: 1.874"
  • Installed Height: 2.070"
  • Height: 2.281
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.120"
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
 SH-1-10GRC
Impeller Hub SH-1-10GRC
O.E. Replacement &
  • Journal Dia: 1.874"
  • Installed Height: 2.070"
  • Height: 2.281
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.120"
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.280"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Inside Dia: 4.15"
 SH-1-14G
Impeller Hub SH-1-14G
&
  • Journal Dia: 1.874"
  • Installed Height: 2.280"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Inside Dia: 4.15"
2 Impeller Hub Flanged
  • Journal Dia: 1.874"
  • Installed Height: 2.28"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
 SH-1-14GRCM
Impeller Hub SH-1-14GRCM
Flanged &
  • Journal Dia: 1.874"
  • Installed Height: 2.28"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
4 Bearing
  • Thickness: 0.134
  • Thickness metric: 3.4
  • Bearing type: Enclosed
  • Outside Dia: 2.250
  • Inside Dia: 1.436
  • Outside Dia Metric: 57.15
  • Inside Dia metric: 36.47

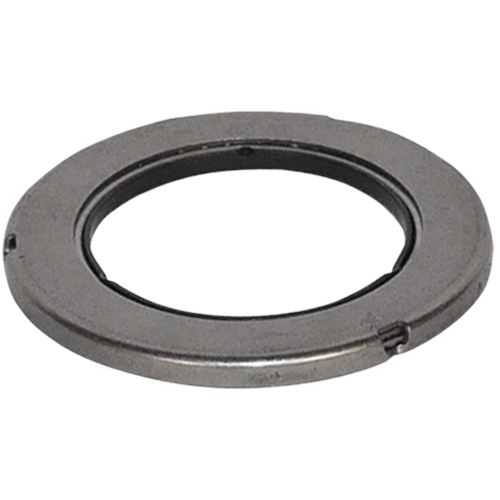

 MW-2-1
Bearing MW-2-1
&
  • Thickness: 0.134
  • Thickness metric: 3.4
  • Bearing type: Enclosed
  • Outside Dia: 2.250
  • Inside Dia: 1.436
  • Outside Dia Metric: 57.15
  • Inside Dia metric: 36.47
4 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1
Bearing SW-2-1
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
4 Bearing
  • Thickness: 0.394
  • Thickness metric: 10.01
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.082
  • Inside Dia: 1.77
  • Outside Dia Metric: 78.28
  • Inside Dia metric: 44.96
  • Race: SW-2-19
 SW-2-14
Bearing SW-2-14
&
  • Thickness: 0.394
  • Thickness metric: 10.01
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.082
  • Inside Dia: 1.77
  • Outside Dia Metric: 78.28
  • Inside Dia metric: 44.96
  • Race: SW-2-19
4 Bearing & Race Kit Allison
  • Outside Dia: 3.09"
  • Inside Dia: 1.77"

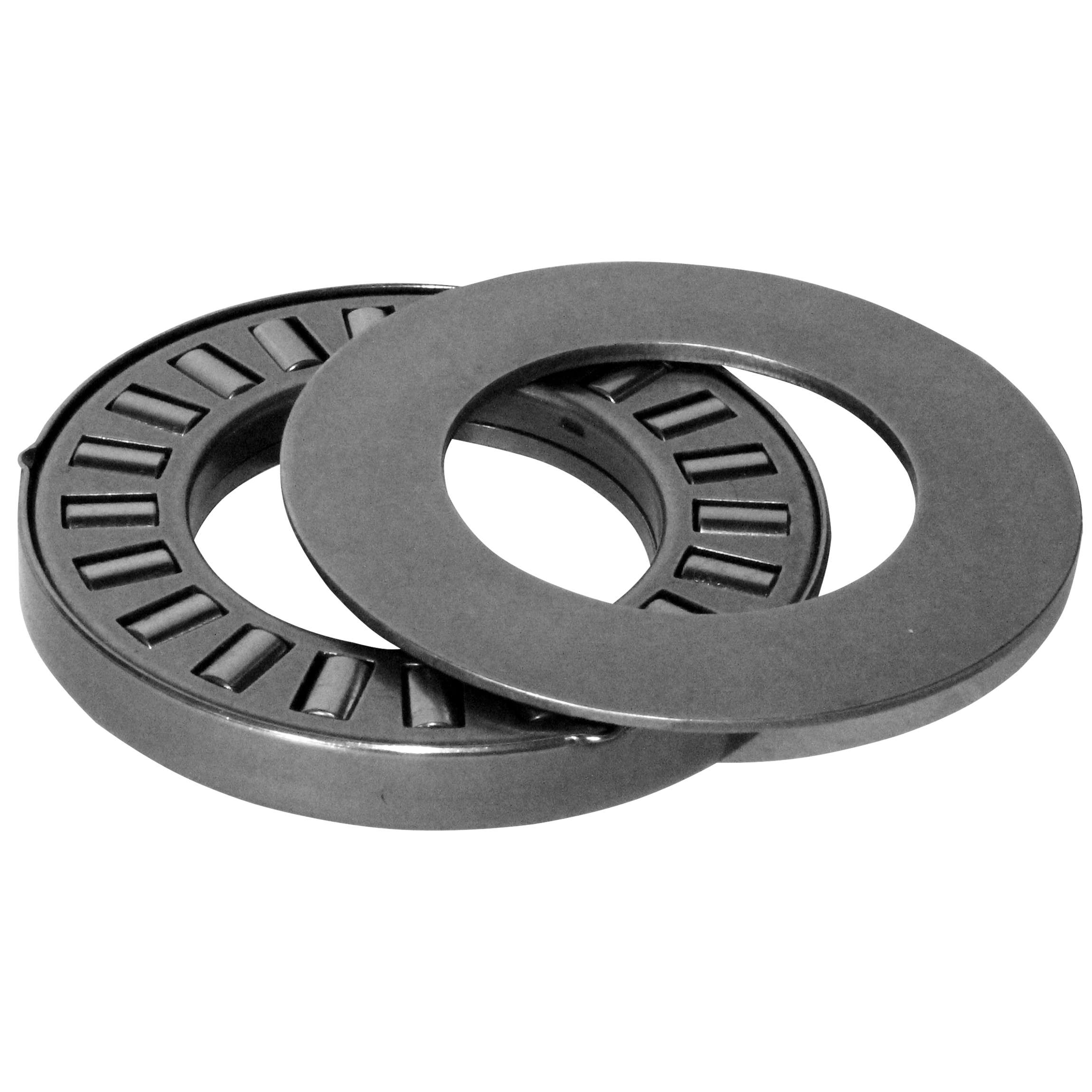

 SW-2-14K
Bearing & Race Kit SW-2-14K
Allison &
  • Outside Dia: 3.09"
  • Inside Dia: 1.77"
4 Bearing
  • Thickness: 0.394
  • Outside Dia: 3.09"
  • Inside Dia: 1.77"
 SW-2-14T
Bearing SW-2-14T
&
  • Thickness: 0.394
  • Outside Dia: 3.09"
  • Inside Dia: 1.77"
4 Bearing Heavy Duty
  • Thickness: 0.156
  • Thickness metric: 3.96
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1HD
Bearing SW-2-1HD
Heavy Duty &
  • Thickness: 0.156
  • Thickness metric: 3.96
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
4 Bearing Race Outer
  • Thickness: .030"
  • Outside Dia: 2.25"
  • Inside Dia: 1.44"
 SW-2-4
Bearing Race SW-2-4
Outer &
  • Thickness: .030"
  • Outside Dia: 2.25"
  • Inside Dia: 1.44"
4 Bearing Race Inner
  • Thickness: .030"
  • Outside Dia: 2.07"
  • Inside Dia: 1.48"
  • Inside Lip
 SW-2-6
Bearing Race SW-2-6
Inner &
  • Thickness: .030"
  • Outside Dia: 2.07"
  • Inside Dia: 1.48"
  • Inside Lip
9 Accordion Spring
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
 SS-6
Accordion Spring SS-6
&
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
9 Accordion Spring
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
 SS-6-6
Accordion Spring SS-6-6
&
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
