Torque Converter | Aisin-Warner | TF-81SC (Ford AF21)

Ill.# Image Description Specification Part #
Misc Fits 11-1/8” units NPN-SPL
Misc NPN-SPL
& Fits 11-1/8” units
0 Turbine Washer 8 Outer Notches
  • Thickness: 0.136"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-20
Turbine Washer SW-9-20
8 Outer Notches &
  • Thickness: 0.136"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
0 Turbine Washer 8 Outer Notches
  • Thickness: 0.154"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-22
Turbine Washer SW-9-22
8 Outer Notches &
  • Thickness: 0.154"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
1 Bearing Impeller-side, 11-1/8” Units Only
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 4.449
  • Inside Dia: 3.543
  • Outside Dia Metric: 113
  • Inside Dia metric: 89.99
 AW-2-1
Bearing AW-2-1
& Impeller-side, 11-1/8” Units Only
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 4.449
  • Inside Dia: 3.543
  • Outside Dia Metric: 113
  • Inside Dia metric: 89.99
2 Bearing Turbine side, 11-1/8" Unit
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 4.213
  • Inside Dia: 3.347
  • Outside Dia Metric: 107.01
  • Inside Dia metric: 85.01
 AW-2-2
Bearing AW-2-2
& Turbine side, 11-1/8" Unit
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 4.213
  • Inside Dia: 3.347
  • Outside Dia Metric: 107.01
  • Inside Dia metric: 85.01
3 Seal Ring Scarf cut 11-1/8" Unit
  • Height: 0.077
  • Width: 0.087
  • Material: PTFE
  • Height Metric: 1.9558
  • Seal Type: Scarf Cut
  • Outside Dia: 1.559
  • Outside Dia Metric: 39.5986
 FO-25-19
Seal Ring FO-25-19
Scarf cut & 11-1/8" Unit
  • Height: 0.077
  • Width: 0.087
  • Material: PTFE
  • Height Metric: 1.9558
  • Seal Type: Scarf Cut
  • Outside Dia: 1.559
  • Outside Dia Metric: 39.5986
4 Turbine Washer 8 Outer Notches bearing
  • Thickness: 0.136"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-19
Turbine Washer SW-9-19
8 Outer Notches & bearing
  • Thickness: 0.136"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"

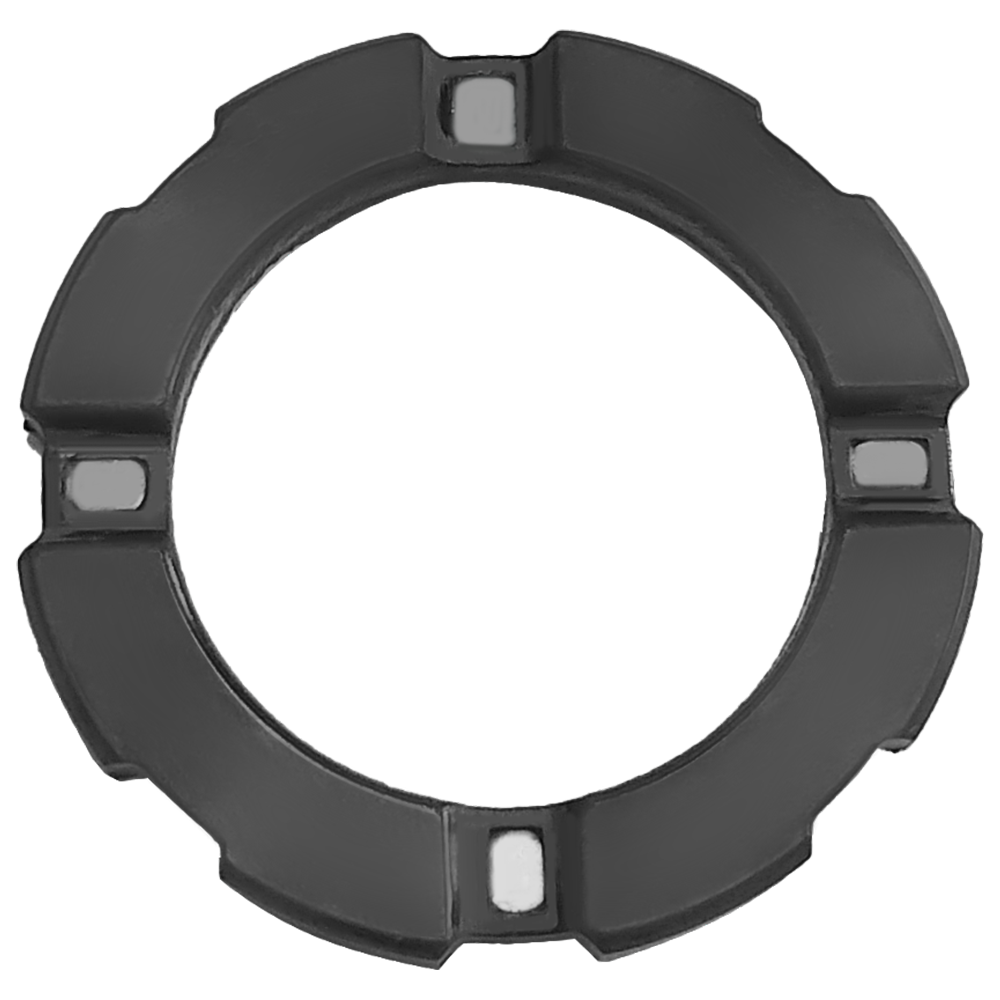

5 Turbine Washer 8 Outer Notches
  • Thickness: 0.154"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-21
Turbine Washer SW-9-21
8 Outer Notches &
  • Thickness: 0.154"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
6 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 8.75"
 TX-23-17
Lining (Friction Ring,Wafer) TX-23-17
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 8.75"
7 Lining (Friction Ring,Wafer) Fits 10-1/4” units. AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375"
  • Inside Dia: 8.125"
 FX-23-18
Lining (Friction Ring,Wafer) FX-23-18
& Fits 10-1/4” units. AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375"
  • Inside Dia: 8.125"

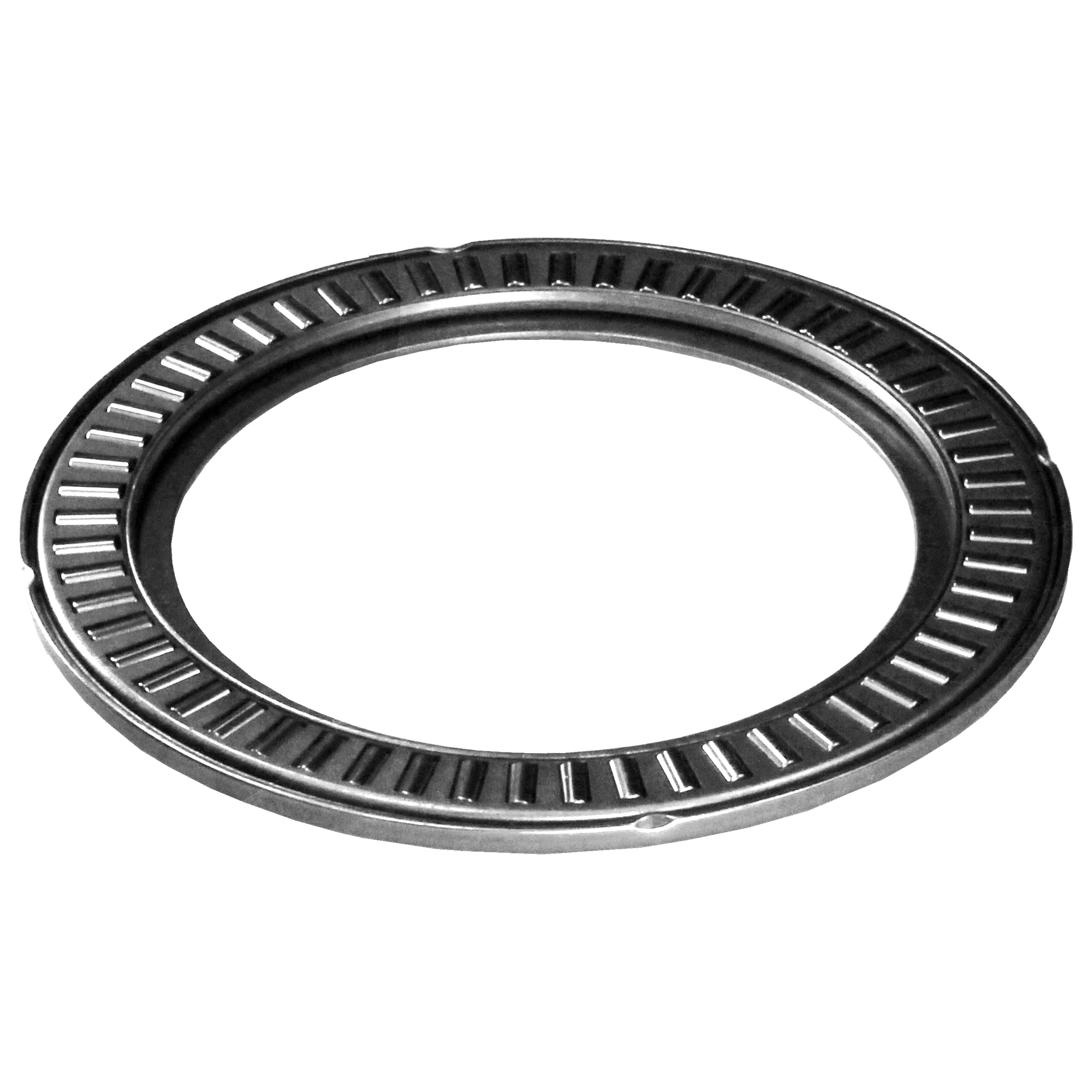

8 Bearing Impeller Side 10-1/4" Unit
  • Thickness: 0.129
  • Thickness metric: 3.28
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.44
  • Inside Dia: 2.43
  • Outside Dia Metric: 87.38
  • Inside Dia metric: 61.72
  • Race: AW-2-4
 AW-2-3
Bearing AW-2-3
& Impeller Side 10-1/4" Unit
  • Thickness: 0.129
  • Thickness metric: 3.28
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.44
  • Inside Dia: 2.43
  • Outside Dia Metric: 87.38
  • Inside Dia metric: 61.72
  • Race: AW-2-4
