Torque Converter | Aisin-Warner | Aisin Seiki AS69RC

Ill.# Image Description Specification Part #
1 Misc NPN-SPL
Misc NPN-SPL
&
8 Sprag
  • Thickness: 0.750"
  • Material: Hardened Steel
  • Cam Count: 29 elements
  • Outer Race Inside Dia: 3.281"
  • Inner Race Outside Dia: 2.625"
 SC-6
Sprag SC-6
&
  • Thickness: 0.750"
  • Material: Hardened Steel
  • Cam Count: 29 elements
  • Outer Race Inside Dia: 3.281"
  • Inner Race Outside Dia: 2.625"
18 Lining (Friction Ring,Wafer)
  • Thickness: 0.030"
  • Material: Red
  • Outside Dia: 8.55"
  • Inside Dia: 7.414"
 YX-23-27
Lining (Friction Ring,Wafer) YX-23-27
&
  • Thickness: 0.030"
  • Material: Red
  • Outside Dia: 8.55"
  • Inside Dia: 7.414"
18 Lining Kit 2 Grooved Linings
  • Thickness: 0.030"
  • Material: Grooved (Modulated),Kevlar®
  • Outside Dia: 8.55"
  • Inside Dia: 7.414"
  • Includes: YX-23-23AMK + YX-23-23BMK)
 YX-23-27KK
Lining Kit YX-23-27KK
2 Grooved Linings &
  • Thickness: 0.030"
  • Material: Grooved (Modulated),Kevlar®
  • Outside Dia: 8.55"
  • Inside Dia: 7.414"
  • Includes: YX-23-23AMK + YX-23-23BMK)
18 Friction Plate 3 Pieces Required.
  • Thickness: 0.099"
  • Internal Teeth: 42
  • Outside Dia: 8.563"
  • Inside Dia: 6.810"
 YX-26-7
Friction Plate YX-26-7
& 3 Pieces Required.
  • Thickness: 0.099"
  • Internal Teeth: 42
  • Outside Dia: 8.563"
  • Inside Dia: 6.810"

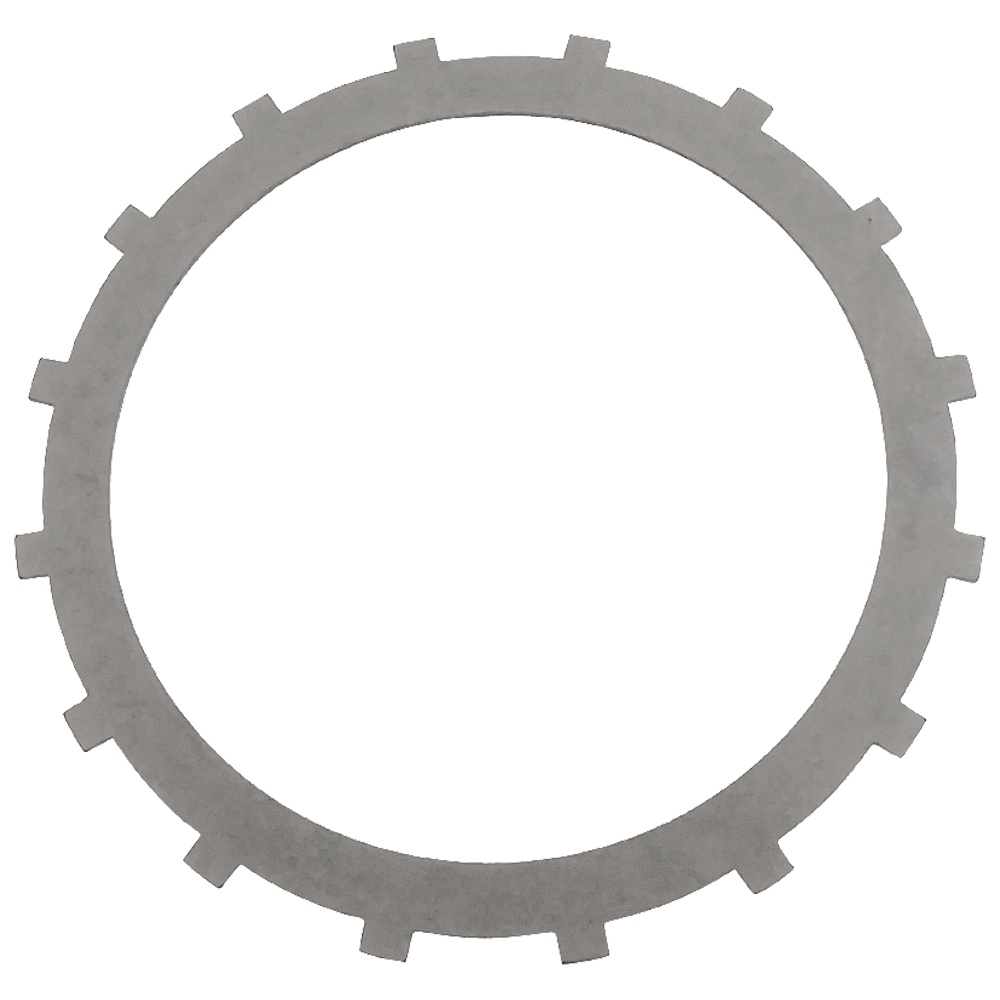

19 Steel Clutch-Plate AS69RC 3 Pieces Required.
  • Thickness: 0.072"
  • External Teeth: 16
  • Outside Dia: 9.175"
  • Inside Dia: 7.340"
 YX-26-8
Steel Clutch-Plate YX-26-8
AS69RC & 3 Pieces Required.
  • Thickness: 0.072"
  • External Teeth: 16
  • Outside Dia: 9.175"
  • Inside Dia: 7.340"
20 D-Ring Seal
  • Height: 0.152
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 3.8608
  • Seal Type: D-Ring
  • Inside Dia: 3.904
  • Inside Dia metric: 99.1616
 TO-25-24
D-Ring Seal TO-25-24
&
  • Height: 0.152
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 3.8608
  • Seal Type: D-Ring
  • Inside Dia: 3.904
  • Inside Dia metric: 99.1616
22 D-Ring Seal
  • Height: 0.147"
  • Width: 0.085"
  • Material: Fluorocarbon
  • Seal Type: D-Ring
  • Outside Dia: 8.444"
 AO-25-1
D-Ring Seal AO-25-1
&
  • Height: 0.147"
  • Width: 0.085"
  • Material: Fluorocarbon
  • Seal Type: D-Ring
  • Outside Dia: 8.444"
