Torque Converter | Aisin-Warner | Aisin Seiki AS68RC, A465

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub Flanged Fits AS68RC only
  • Journal Dia: 1.843"
  • Installed Height: 2.210"
  • Height: 2.570"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.160"
  • Material: Steel
 YH-1-22FLG
Impeller Hub YH-1-22FLG
Flanged & Fits AS68RC only
  • Journal Dia: 1.843"
  • Installed Height: 2.210"
  • Height: 2.570"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.160"
  • Material: Steel
2 Impeller Hub Flanged Fits A465 only
  • Journal Dia: 1.843"
  • Installed Height: 2.195"
  • Height: 2.475"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.080"
  • Material: Steel
 YH-1-23FLG
Impeller Hub YH-1-23FLG
Flanged & Fits A465 only
  • Journal Dia: 1.843"
  • Installed Height: 2.195"
  • Height: 2.475"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.080"
  • Material: Steel

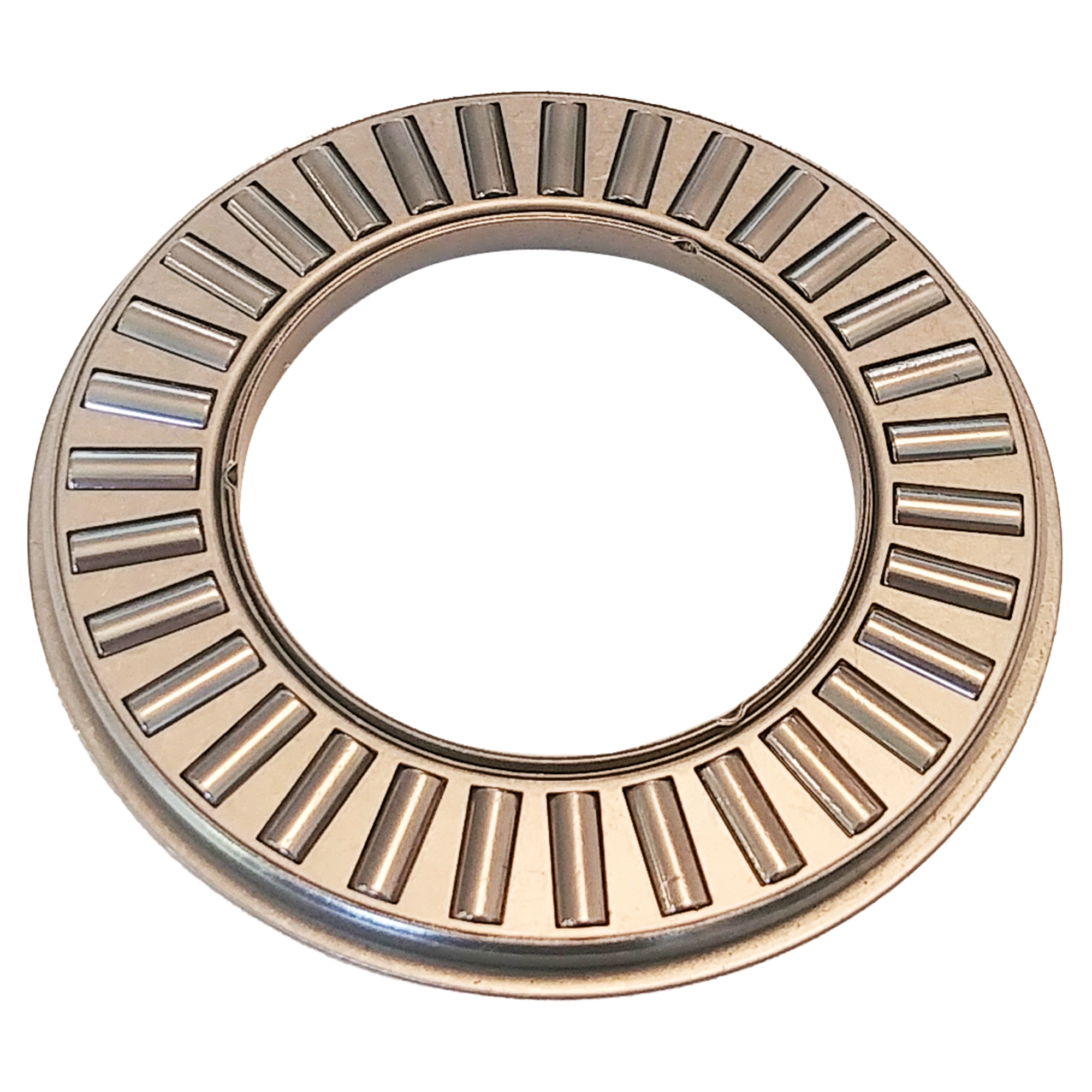

3 Bearing Impeller & turbine side 2 Pieces Required.
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Semi-Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3
  • Inside Dia: 1.779
  • Outside Dia Metric: 76.2
  • Inside Dia metric: 45.19
  • Race: TW-2-24
 TW-2-23
Bearing TW-2-23
& Impeller & turbine side 2 Pieces Required.
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Semi-Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3
  • Inside Dia: 1.779
  • Outside Dia Metric: 76.2
  • Inside Dia metric: 45.19
  • Race: TW-2-24

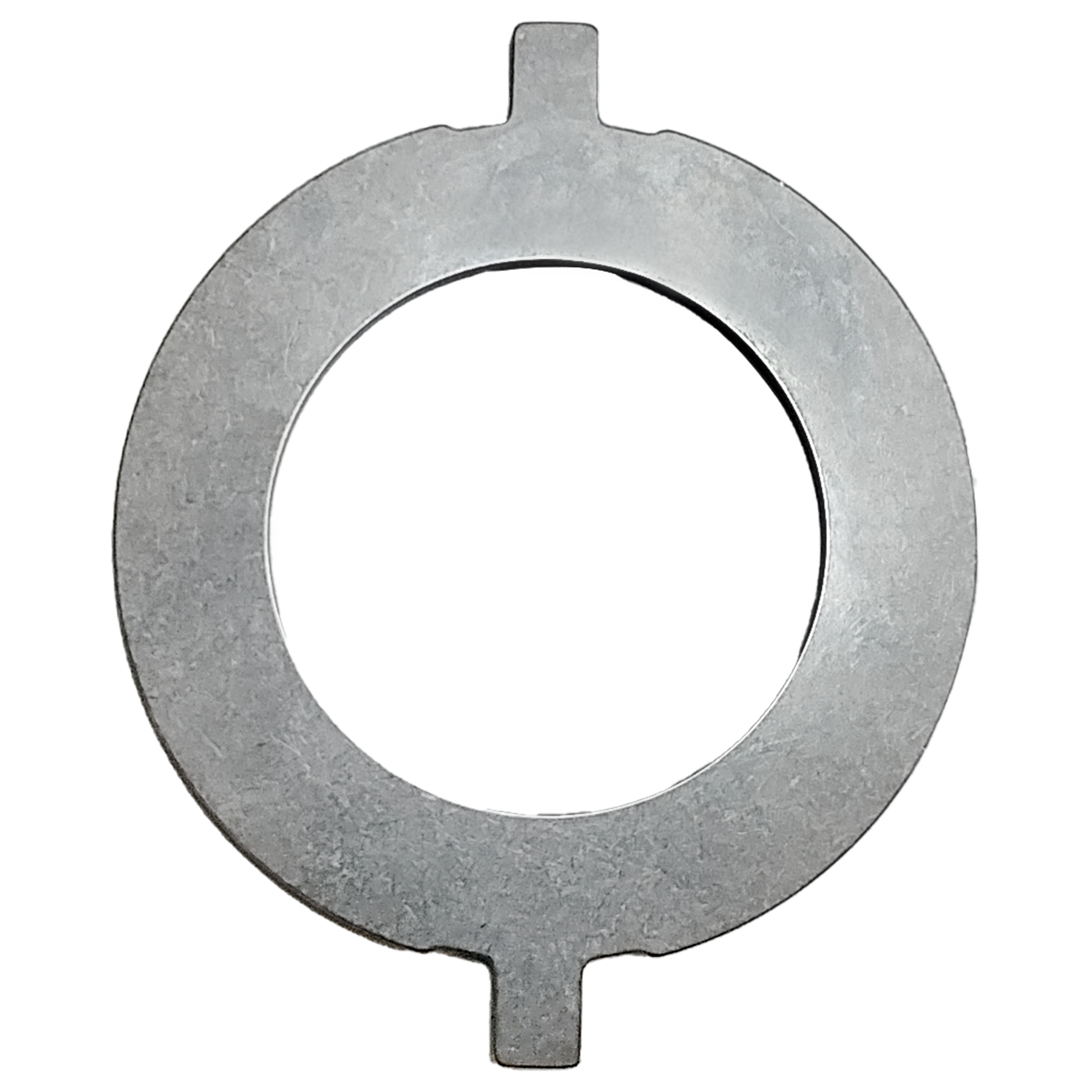

4 Bearing Race 2 O.D. Tangs Impeller & turbine side 2 Pieces Required.
  • Thickness: 0.098"
  • Material: Hardened Steel
  • Outside Dia: 2.953"
  • Inside Dia: 1.898"
 TW-2-24
Bearing Race TW-2-24
2 O.D. Tangs & Impeller & turbine side 2 Pieces Required.
  • Thickness: 0.098"
  • Material: Hardened Steel
  • Outside Dia: 2.953"
  • Inside Dia: 1.898"
5 Stator Cap 2 Tabs
  • Thickness: 0.620"
  • Material: Aluminum
  • Functional Thickness: 0.182"
  • Outside Dia: 4.180"
  • Inside Dia: 1.810"
  • Tab OD: 4.354"
 YW-4-16
Stator Cap YW-4-16
2 Tabs &
  • Thickness: 0.620"
  • Material: Aluminum
  • Functional Thickness: 0.182"
  • Outside Dia: 4.180"
  • Inside Dia: 1.810"
  • Tab OD: 4.354"
6 Sprag
  • Thickness: 0.750"
  • Material: Hardened Steel
  • Cam Count: 29 elements
  • Outer Race Inside Dia: 3.281"
  • Inner Race Outside Dia: 2.625"
 SC-6
Sprag SC-6
&
  • Thickness: 0.750"
  • Material: Hardened Steel
  • Cam Count: 29 elements
  • Outer Race Inside Dia: 3.281"
  • Inner Race Outside Dia: 2.625"
7 Clutch Plate Kit
  • Includes: 3 Friction (YX-26-1, ) & 3 Steel Plates (YX-26-2) & 1 Pressure Plate ( YX-2-4)
 YX-26-5K
Clutch Plate Kit YX-26-5K
&
  • Includes: 3 Friction (YX-26-1, ) & 3 Steel Plates (YX-26-2) & 1 Pressure Plate ( YX-2-4)
8 D-Ring Seal Outer Piston
  • Height: 0.149
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 3.7846
  • Seal Type: D-Ring
  • Inside Dia: 6.962
  • Inside Dia metric: 176.8
 TO-25-23
D-Ring Seal TO-25-23
& Outer Piston
  • Height: 0.149
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 3.7846
  • Seal Type: D-Ring
  • Inside Dia: 6.962
  • Inside Dia metric: 176.8
8 D-Ring Seal Inner piston
  • Height: 0.152
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 3.8608
  • Seal Type: D-Ring
  • Inside Dia: 3.904
  • Inside Dia metric: 99.1616
 TO-25-24
D-Ring Seal TO-25-24
& Inner piston
  • Height: 0.152
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 3.8608
  • Seal Type: D-Ring
  • Inside Dia: 3.904
  • Inside Dia metric: 99.1616
9 Friction Plate 3 Pieces Required.
  • Thickness: 0.098"
  • Internal Teeth: 36
  • Lining Count: 2
  • Outside Dia: 7.431"
  • Inside Dia: 5.804"
  • Lining Part-ID: YX-23-23KK
 YX-26-1
Friction Plate YX-26-1
& 3 Pieces Required.
  • Thickness: 0.098"
  • Internal Teeth: 36
  • Lining Count: 2
  • Outside Dia: 7.431"
  • Inside Dia: 5.804"
  • Lining Part-ID: YX-23-23KK
9 Friction Plate Kit
  • Thickness: 0.098"
  • Internal Teeth: 36
  • Outside Dia: 7.431"
  • Inside Dia: 5.804"
  • Includes 3 pieces of YX-26-1
 YX-26-1K
Friction Plate Kit YX-26-1K
&
  • Thickness: 0.098"
  • Internal Teeth: 36
  • Outside Dia: 7.431"
  • Inside Dia: 5.804"
  • Includes 3 pieces of YX-26-1
9.1 Lining (Friction Ring,Wafer)
  • Thickness: 0.030"
  • Material: Red
  • Outside Dia: 7.430"
  • Inside Dia: 6.300"
 YX-23-23
Lining (Friction Ring,Wafer) YX-23-23
&
  • Thickness: 0.030"
  • Material: Red
  • Outside Dia: 7.430"
  • Inside Dia: 6.300"
9.1 Lining Kit 2 Grooved Linings
  • Thickness: 0.030"
  • Material: Grooved (Modulated),Kevlar®
  • Outside Dia: 7.430"
  • Inside Dia: 6.300"
  • Includes: YX-23-23AMK + YX-23-23BMK)
 YX-23-23KK
Lining Kit YX-23-23KK
2 Grooved Linings &
  • Thickness: 0.030"
  • Material: Grooved (Modulated),Kevlar®
  • Outside Dia: 7.430"
  • Inside Dia: 6.300"
  • Includes: YX-23-23AMK + YX-23-23BMK)

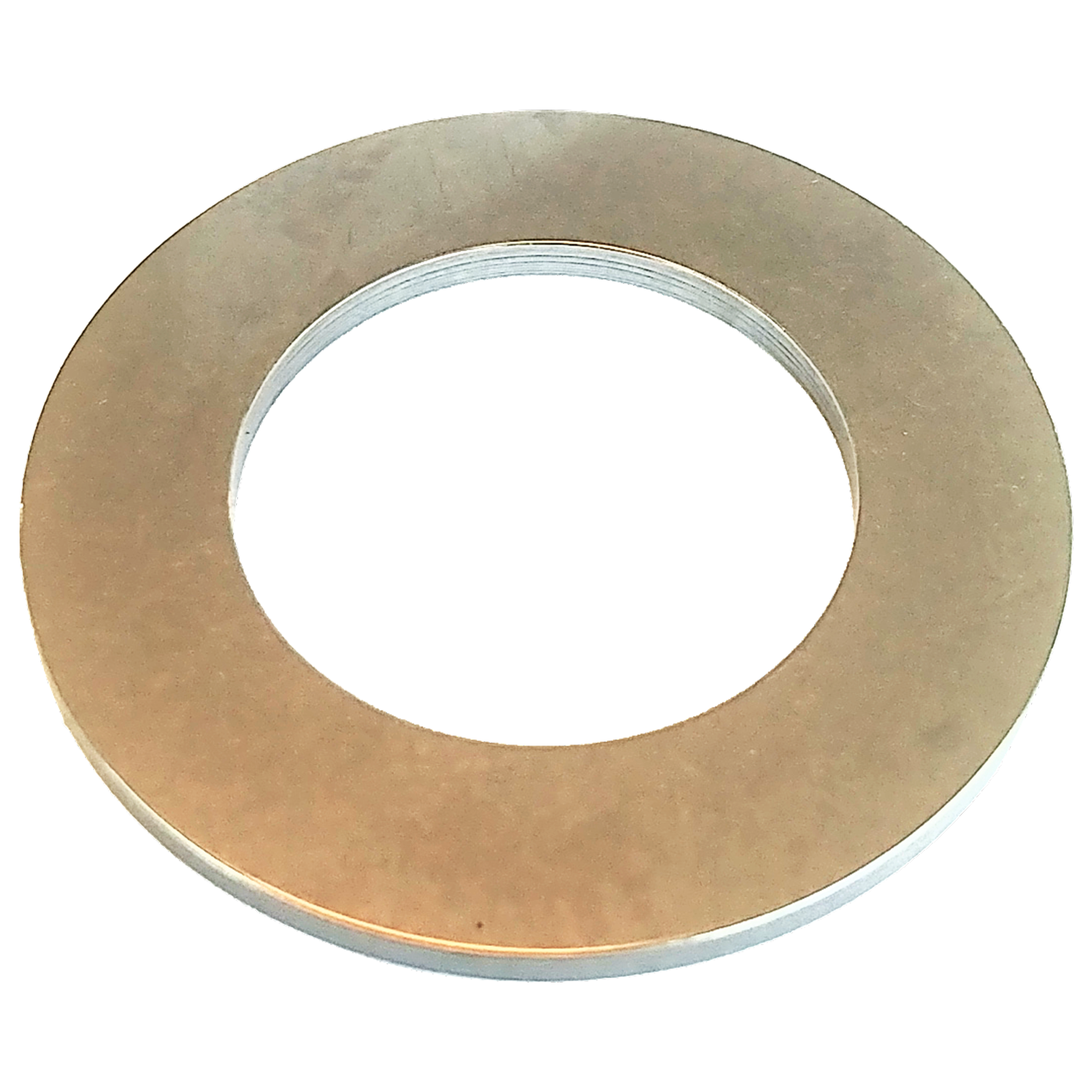

10 Bearing Race Front cover Front cover
  • Thickness: 0.098"
  • Material: Hardened Steel
  • Outside Dia: 1.843"
  • Inside Dia: 1.094"
 TW-9-28
Bearing Race TW-9-28
Front cover & Front cover
  • Thickness: 0.098"
  • Material: Hardened Steel
  • Outside Dia: 1.843"
  • Inside Dia: 1.094"

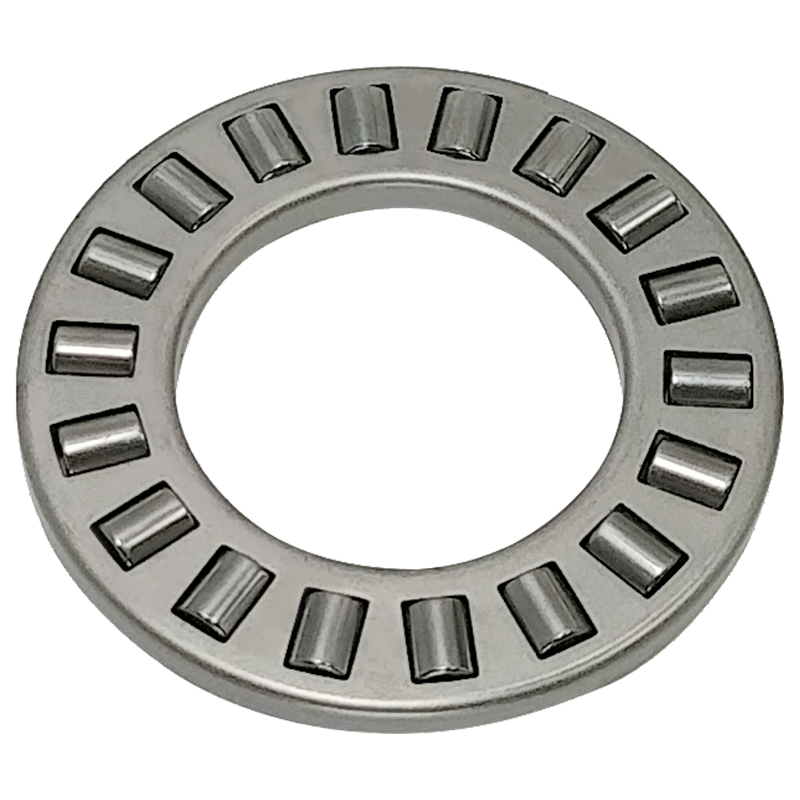

11 Bearing Front cover
  • Thickness: 0.157
  • Thickness metric: 4
  • Bearing type: Exposed
  • Material: Hardened Steel
  • Outside Dia: 1.717
  • Inside Dia: 0.988
  • Outside Dia Metric: 43.61
  • Inside Dia metric: 25.1
  • Race: TW-9-28, TW-9-29
 TW-9-27
Bearing TW-9-27
& Front cover
  • Thickness: 0.157
  • Thickness metric: 4
  • Bearing type: Exposed
  • Material: Hardened Steel
  • Outside Dia: 1.717
  • Inside Dia: 0.988
  • Outside Dia Metric: 43.61
  • Inside Dia metric: 25.1
  • Race: TW-9-28, TW-9-29

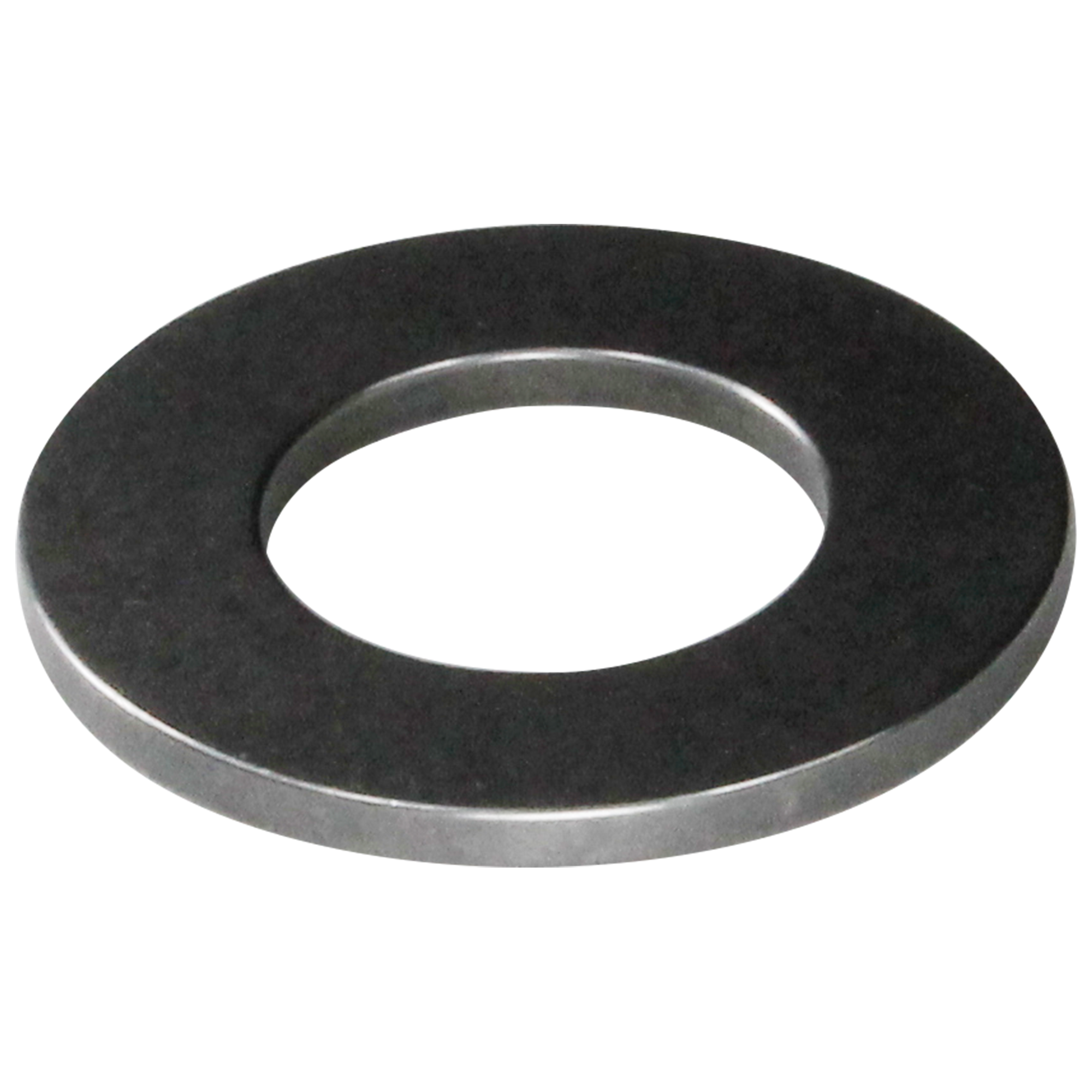

12 Bearing Race Front cover Front cover
  • Thickness: 0.130"
  • Material: Hardened Steel
  • Outside Dia: 1.861"
  • Inside Dia: 0.993"
 TW-9-29
Bearing Race TW-9-29
Front cover & Front cover
  • Thickness: 0.130"
  • Material: Hardened Steel
  • Outside Dia: 1.861"
  • Inside Dia: 0.993"
13 Pilot Weld-in Front cover
  • Flange Dia: 1.940"
  • Material: Steel
  • Pilot Dia: 2123" | Flange Pilot Dia: 1.750"
YX-17-1
Pilot YX-17-1
Weld-in Front cover &
  • Flange Dia: 1.940"
  • Material: Steel
  • Pilot Dia: 2123" | Flange Pilot Dia: 1.750"
14 Hub Front Cover
  • Installed Height: 0.900"
  • Material: Hardened Steel
  • Outside Dia: 3.860"
  • Inside Dia: 0.788"
  • Bearing Pocket ID: 0.985"
 YX-22-1
Hub YX-22-1
Front Cover &
  • Installed Height: 0.900"
  • Material: Hardened Steel
  • Outside Dia: 3.860"
  • Inside Dia: 0.788"
  • Bearing Pocket ID: 0.985"
9.5 Steel Clutch-Plate 3 Pieces Required.
  • Thickness: 0.070"
  • External Teeth: 16
  • Material: Steel
  • Outside Dia: 7.955"
  • Inside Dia: 6.240"
 YX-26-2
Steel Clutch-Plate YX-26-2
& 3 Pieces Required.
  • Thickness: 0.070"
  • External Teeth: 16
  • Material: Steel
  • Outside Dia: 7.955"
  • Inside Dia: 6.240"
9.6 Pressure Plate
  • Thickness: 0.249"
  • External Teeth: 16
  • Material: Steel
  • Outside Dia: 7.955"
  • Inside Dia: 6.240"
 YX-26-4
Pressure Plate YX-26-4
&
  • Thickness: 0.249"
  • External Teeth: 16
  • Material: Steel
  • Outside Dia: 7.955"
  • Inside Dia: 6.240"
